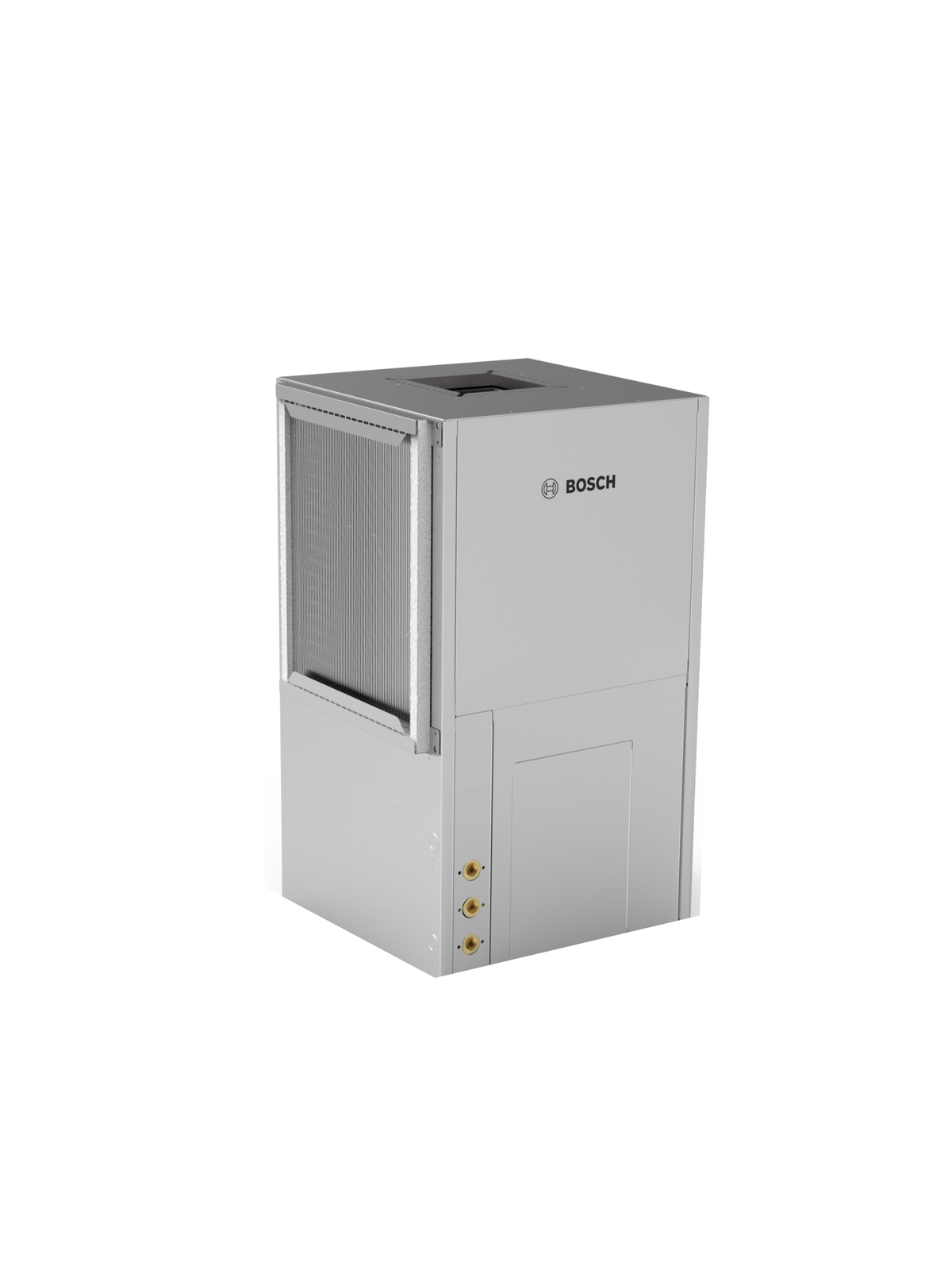

• Water Source Heat Pump Bosch FHP - 5 Ton - Left Hand Return - CL060-1VTC-LLT
1 1

Bosch

Water Source Heat Pump Bosch FHP - 5 Ton - Left Hand Return - CL060-1VTC-LLT

Water Source Heat Pump Bosch FHP - 5 Ton - Left Hand Return - CL060-1VTC-LLT

$5,590.00 USD
$5,590.00 USD
Sale Sold out
Shipping calculated at checkout.

Key specifications

Brand
Bosch
Ton Size
5 Ton
Model numbers
CL060-1VTC-LLT

Systems sold with required licensed installation. Installation is priced separately.

Water Source Heat Pump Bosch FHP - 5 Ton - Left Hand Return - CL060-1VTC-LLT.

5 Ton VERT WSHP COPPER 230V 1PH PSC.

Florida Heat Pump CL Series Water to Air Geothermal Heat Pump System Single Stage.

Bosch Water Source Heat Pump By Florida Heat Pump CL Series comes equipped with a compact cabinet designed to fit most commercial replacement projects. This single-stage unit Bosch Water Source Heat Pump is available in ½ to 6 ton size range and meets or exceeds ASHRAE

90.1 efficiency standards. Bosch WSHP outfitted with the latest in compressor

and heat transfer technologies, Geothermal Heat Pump Systems as well as being available with

optional ECM Constant Torque or ECM Constant Airflow blowers,

this product performs extremely well in both water loop and

geothermal applications.

Bosch CL Series Features
  • Optional Duo-Guard Air Coil.

  • Air Coil Serviceability: Improved design allows for easier

    replacement from the front of the unit.

  • Slide Out Blower: Easy serviceability of the blower, and

    improved access to entire refrigerant circuit.

  • Filter Drier: Standard in all configurations of CL units.

  • Fully Insulated Refrigerant Lines: Refrigerant lines will

    be wrapped in insulation, including the water coil.

  • Swing Out Electrical Box: Electrical box will swing out

    of the way allowing for improved access and easier

    servicing of the unit.

  • Divided Electrical Box: Will have a separate designated

    compartment for high and low voltage components,

    keeping service technicians safer.

  • Gauge Pass Through: Allows refrigerant gauges

    and temperature probes to be connected to the

    unit while allowing for standard unit operation

Unit Protection Module Controller

  • Water coil freeze protection.

  • Air coil freeze protection.

  • Brownout (low voltage) protection.

  • Condensate overflow switch.

  • High and low pressure switches

Quiet Operation

  • A unique sound package eliminates vibration transmission and

    reduces noise, with a blower wheel minimizing discharge air noise.

Environmentally Friendly

These highly efficient units not only reduce your operating cost,

but play their part in reducing carbon dioxide emissions, a leading

cause of global warming. Equipped with R-454B refrigerant, the

CL Series meets the criteria for a lower global warming potential

A2L refrigerant.

Warranty

1 YEAR PARTS / 5 YEAR COMPRESSOR
