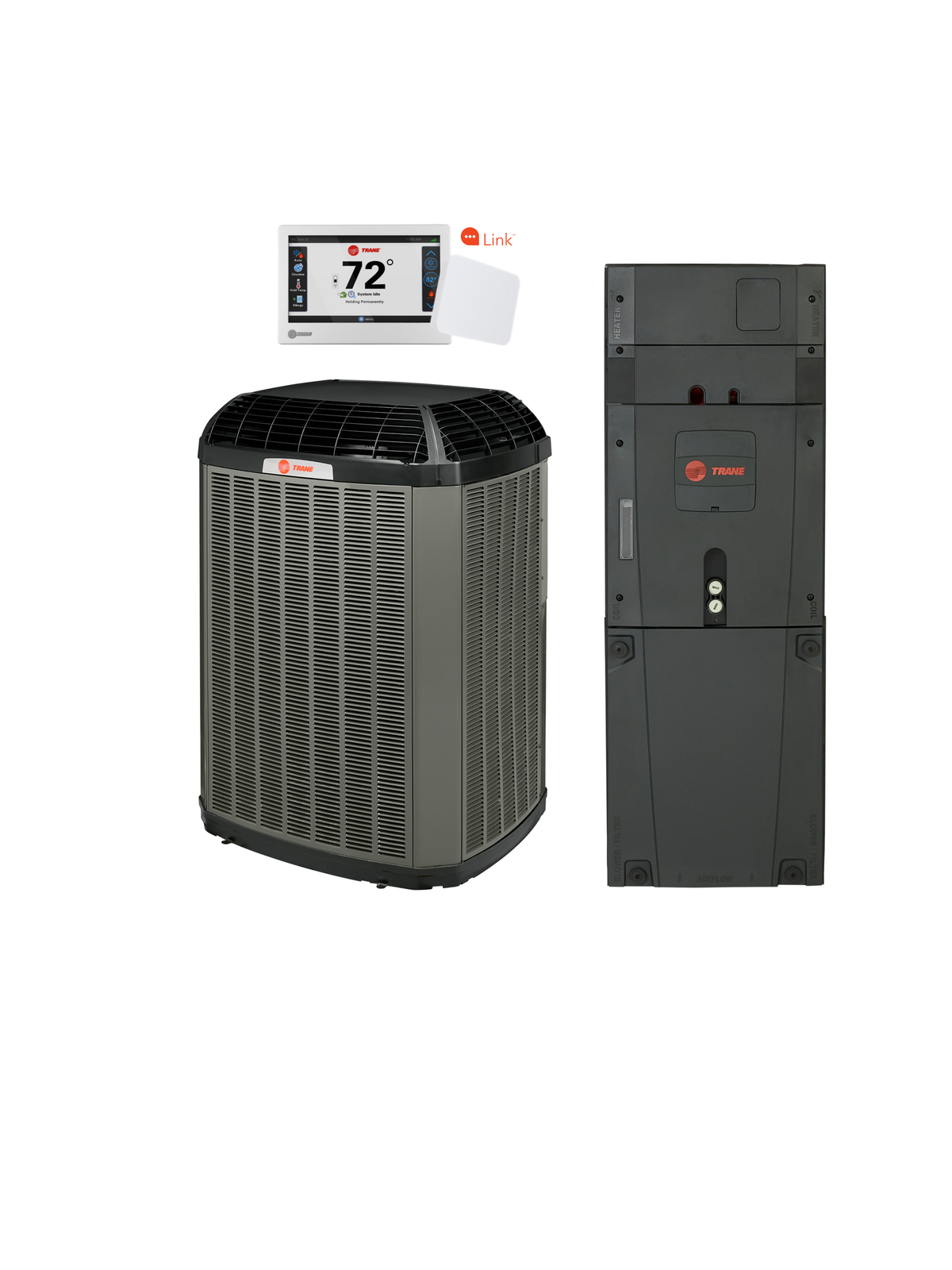

TRANE Link Variable Speed 2 Ton Heat Pump System - 5TWV0X24A1000 - 5TAMXB02AV21D

• General

This unit is designed to operate at outdoor ambient temperatures from 55° F to 120° F in cooling. From — 0° F to 66° F in heating (heat pumps only). Only AHRI approved indoor matches are approved for use with these models.

• TRANE Link Air Conditioners

This outdoor unit contains the TRANE Link Air Conditioners digital communication with Plug-nPlay set up.

• Casing

Unit casing is constructed of heavy gauge. G60 galvanized steel and painted with a weatherresistant powder paint on all louvered panels and prepaint on all other panels. Corrosion and weatherproof CMBP-G30 DuraTuff™ base. WeatherGuard™II Top Shields Unit.

• Refrigerant Controls

Refrigeration system controls include condenser fan, compressor inverter drive and high and low pressure switches. A factory supplied, field installed filter is standard.

• Compressor

Inverter driven compressor with variable output capacities. Noise enclosure minimizes sound levels. Compressor protections reduce operating speed and current draw to maintain operation while protecting the compressor.

• Condenser Coil

The Spine Fin™ outdoor coil provides low airflow resistance and efficient heat transfer. The coil is protected on all four sides by louvered panels. SeaCoast Shield.

• Low Ambient Cooling

As manufactured, this system has built in freeze protection that will allow cooling operation below 55°F but will reduce capacity or shut down completely to prevent operation under adverse conditions.

• Comfort Control

This system must include a A/T HUI2360A200U thermostat and a TSYS2C60A2VVU system controller to operate and is Link communicating only

The Hyperion™ Variable Speed Air Handler harnesses Trane’s industry-leading innovation for ultimate comfort and convenience. Features include:

R-454B compatibility

Trane Link® communicating technology

SmartCharge™ automatic refrigerant recharging

Condensation-eliminating design

Variable-speed Vortica™ blower motor

Comfort-R™ technology for humidity control

All-aluminum epoxy-coated evaporator coil

Hydronic and electric heating options

It’s easily accessible from a smartphone, tablet or computer, which makes adjusting the temperature or energy use for your family’s comfort a breeze. The SC360 System Controller works in conjunction with the Trane Link system components to enable centralized decision making, self-configuration, improved accuracy, enhanced dehumidification, and enhanced maintenance of the HVAC system operation. Zoning capable.

The top-of-the line Trane Hyperion air handler represents a significant advance in technology and whole-home comfort using 14 industry-exclusive patents. These exclusive components include ultra-quiet, efficient Vortica™ Blowers and all-aluminum epoxy-coated coils, which offer longer life and superior odor prevention compared to conventional copper and aluminum coils.Fully enclosed insulation and double-wall cabinets ensure quiet,energy-efficient performance, while minimizing airborne dust and condensation that can cause mold and mildew.

This electric heat pump offers better sustainability, using R-454B, a new low-GWP refrigerant to heat and cool your home.

With a SEER2 of up to 22.4 and an HSPF2 of up to 10.5, you get optimal efficiency year-round. In addition, this unit meets the requirements for ENERGY STAR® Cold Climate Designation. This heat pump is tested to provide a 70% heating capacity ratio at 5° F and delivers 100% heating capacity down to 32° F.
