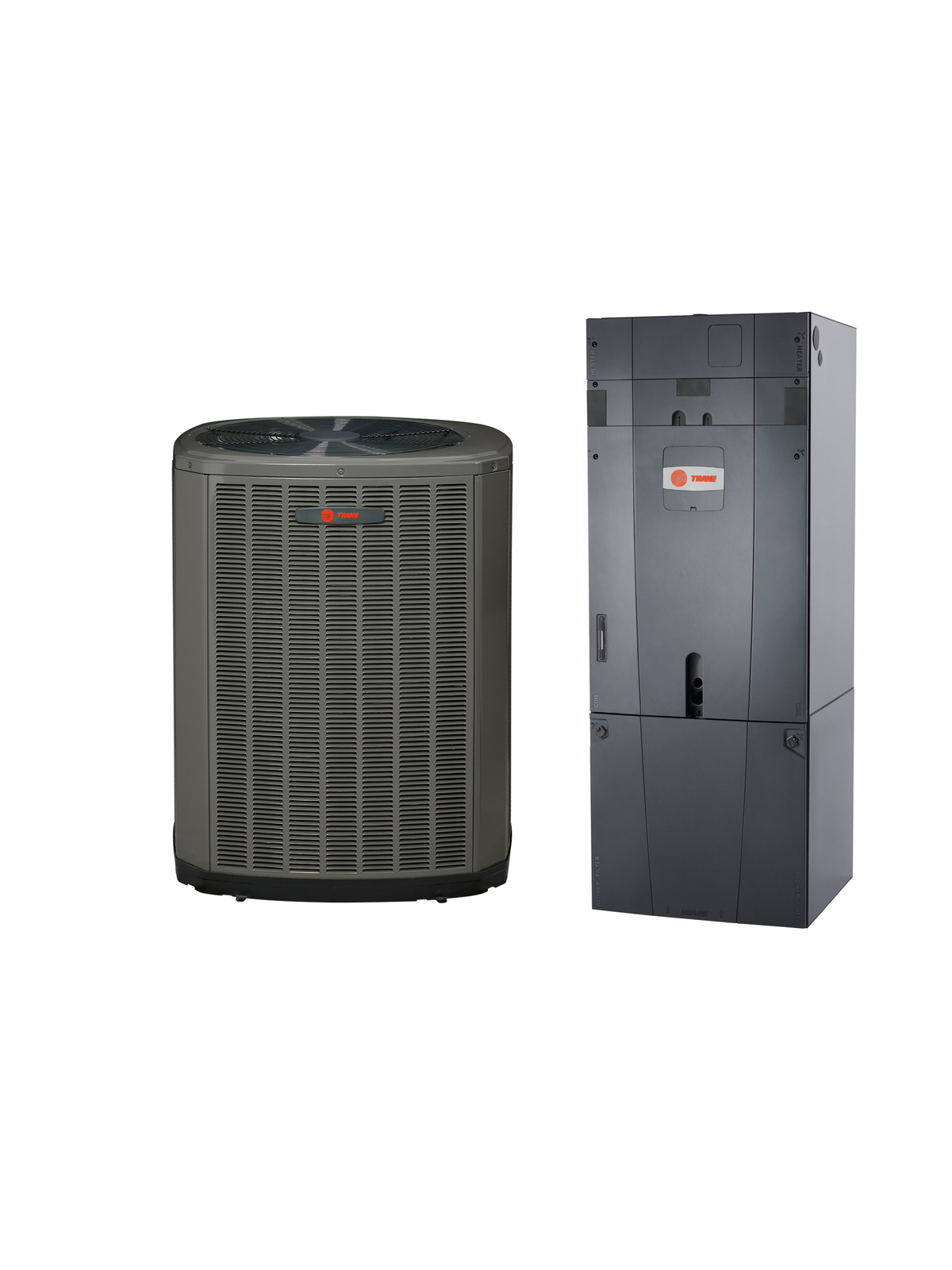

TRANE 4 Ton Heat Pump System - 14.3 SEER2 - 5TWR4048A1000 - 5TAM5D06AC41S

• General

The outdoor condensing units are factory charged with the system charge required for the outdoor condensing unit, ten (10) feet of tested connecting line, and the smallest rated indoor evaporative coil match. This unit is designed to operate at outdoor ambient temperatures as high as 115°F. Cooling capacities are matched with a wide selection of air handlers and furnace coils that are AHRI certified. The unit is certified to UL 60335-2-40. Exterior is designed for outdoor application.

• Casing

Unit casing is constructed of heavy gauge, galvanized steel and painted with a weather-resistant powder paint finish. The corner panels are prepainted. All panels are subjected to our 1,000 hour salt spray test.

• Refrigerant Controls

Refrigeration system controls include condenser fan, compressor contactor and low and high pressure switches. A factory supplied, field installed liquid line drier is standard.

• Compressor

The compressor features internal over temperature and pressure protection. Other features include: Centrifugal oil pump and low vibration and noise.

• Condenser Coil

The outdoor coil provides low airflow resistance and efficient heat transfer. The coil is protected on all four sides by louvered panels.

• Low Ambient Cooling

As manufactured, this system has a cooling capacity to 55°F. The addition of an evaporator defrost control permits operation to 40°F. The addition of an evaporator defrost control with TXV permits low ambient cooling to 30°F. The addition of the BAYLOAM107A low ambient kit permits ambient cooling to 20°F

• Unique cabinet design

– Double Wall Foamed and Formed Cabinet System

– Water Proof Cabinet Design

– R-4.2 Insulating Value (Avg Insulating Value R8.2)

– Composite Cabinet Doors

– Sweat Eliminating Cabinet Design

– Loose Fiber Eliminating Cabinet Design

– Smooth Cleanable Cabinet Design

– 2% or Less Air Leakage

– Precision Durable Door Seals

– Modular Cabinet

• • Multi-position up/down flow horizontal left/right
• • Phillips head door fasteners
• • Side Return Option
• • Refrigerant Connections
• • Condensate Connections
• • Premarked Conduit Connection Locations
• • Vortica® Blower with Integrated Slide Deck for Easy Removal
• • Polarized Plug connections on Blower
• • Aluminum Coil with Integrated Slide Deck for Easy Removal
• • Slide in Electric Heaters with polarized plug connections (sold as accessory)
• • Polarized Plug connections for Electric Heater
• • UVC light kit with safety switch and polarized plug connections (sold as accessory)
• • Labeled Panels and connections
• • 1 1/4" to 1" And 3/4" to 1/2" Conduit connection on Left, Right and Top
• • Molded in 1" Standard Filter rail
• • R-454B Thermal Expansion Valve
• • Low Voltage Pigtail Connections
• • Enhanced Coil Fin Patented
• • Blow Through Design
• • High Efficiency ECM Motor
• • Maximum Width of 23.5"
• • Compact 20.8" depth with doors removed
• • Integrated Horizontal Drain pans
• • Soft start fan motor operation
• • Single Color
• • Fused 24V Power
• • 5 Year Warranty
• • 10 Year Warranty Registered
• • Optional Extended Warranty Available

Base Limited Warranty Period Compressor, Outdoor Coil, Parts - 5 years.

Registered Limited Warranty Period Compressor, Outdoor Coil, Parts - 10 years.

Limited Warranty Period for Commercial Applications: Compressor - 5 years, Coil, Parts - 1 year.
