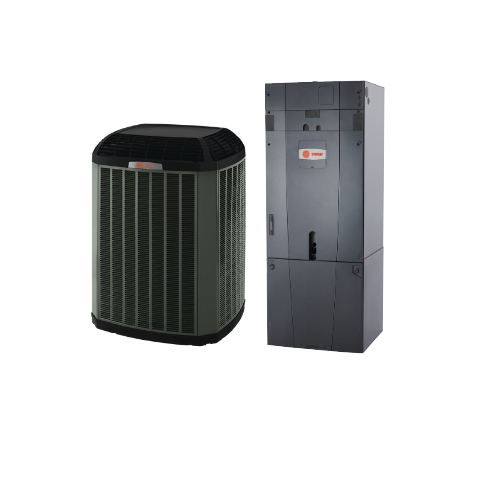

TRANE 3 Ton 17.5 SEER2 AC System 5TTX7036A1000 - 5TAMXD04AV31D Hyperion

• Unique cabinet design

- 2% or less air leakage

- Precision applied

- durable door seals

- Specially designed air seal around refrigerant, condensate and conduit connections

- Double wall foamed cabinet system

- R-4.2 Insulating Value (Avg Insulating Value R8.2)

- No loose fiber design

- Smooth cleanable interior design

- Sweat eliminating design

- Composite foamed cabinet doors

- Water proof cabinet design

- Integrated horizontal drain pans

- Modular cabinet

• Multi-position up/down flow horizontal left/right • Link™ Communicating or 24V Control

• Side return option (sold as accessory)

• Pre-marked Conduit Connection Locations

• Alert code notification

• Low voltage terminal connection point

• Phillips head door fasteners

• Vortica® blower with polarized plug connections and integrated slide deck for easy removal

• Aluminum coil with integrated slide deck for easy removal and polarized plug connections on coil EEV

• Patented enhanced coil fin

• Electronic Expansion Valve (EEV) with low ambient and low superheat compressor protection

• Slide in electric heaters with polarized plug connections (sold as accessory)

• Slide in hot water coils with polarized plug connections (sold as accessory)

• UVC light kit with safety switch and polarized plug connections (sold as accessory)

• Labeled panels and connections

• Molded in 1” standard filter rail

• Variable speed ECM motor

• Soft start fan motor operation

• Comfort R™mode

• Built in fan delay modes

• Maximum width of 23.5”

• Compact 20.8” depth with doors removed

• Fused 24V power

• 5 Year Warranty

• 10 Year Warranty Registered

• Optional Extended Warranty Available

The Hyperion™ Variable Speed Air Handler harnesses Trane’s industry-leading innovation for ultimate comfort and convenience. Features include:

• R-454B compatibility

• Trane Link® communicating technology

• SmartCharge™ automatic refrigerant recharging

• Condensation-eliminating design

• Variable-speed Vortica™ blower motor

• Comfort-R™ technology for humidity control

• All-aluminum epoxy-coated evaporator coil

• Hydronic and electric heating options

General This unit is designed to operate at outdoor ambient temperatures 55°F to 120°F in cooling. From — 0°F to 66°F in heating (heat pumps only). Only AHRI approved indoor matches are approved for use with these models.

Casing Unit casing is constructed of heavy gauge. G60 galvanized steel and painted with a weather-resistant powder paint on all louvered panels and prepaint on all other panels. Corrosion and weatherproof CMBP-G30 DuraTuff™ base.

Refrigerant Controls Refrigeration system controls include condenser fan, compressor inverter drive and high and low pressure switches. A factory supplied, field installed filter is standard.

Compressor Inverter driven compressor with variable output capacities. Compressor protections reduce operating speed and current draw to maintain operation while protecting the compressor.

Condenser Coil The Spine Fin™ outdoor coil provides low airflow resistance and efficient heat transfer. The coil is protected on all four sides by louvered panels.

Low Ambient Cooling As manufactured, this system has built in freeze protection that will allow cooling operation below 55°F but will reduce capacity or shut down completely to prevent operation under adverse conditions.

UP to 18 SEER2

Variable speed

Base Limited Warranty Period: Compressor, Outdoor Coil, Parts - 5 years.

Registered Limited Warranty Period: Compressor - 12 years, Outdoor Coil, Parts - 10 years

Limited Warranty Period for Commercial Applications: Compressor - 5 years, Coil, Parts - 1 year

Product Registration and Registration Transfer exclusions vary in the US from state to state and in Canada from province to province. To determine if there are specific exclusions for your state or province check your local laws.
