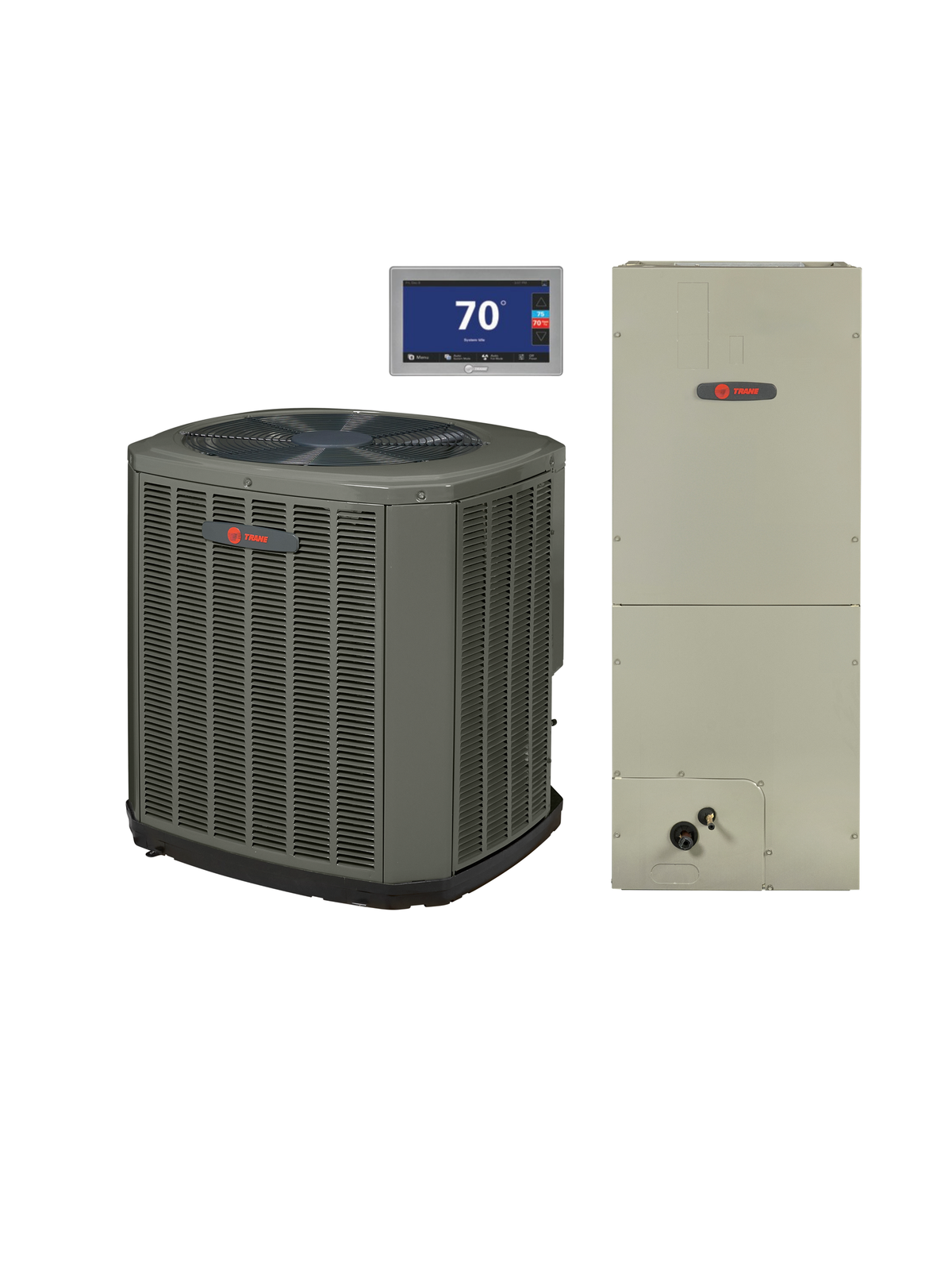

TRANE 2 Ton - AC System 18.1 SEER2 TruComfort - 5TTV8X24A1000 - 5TEMCB02AV21

Features and Benefits

• Link™ Communicating or 24V control

• Painted metal cabinet with captured foil face insulation

• 2% or less air leakage

• R-4.2 Insulating Value

• Multi-Position UP/Down Flow, Horizontal Left /Right

• ALL Aluminum Coil

• Electric Heaters with polarized plug connections (sold as accessory)

• R-454B Thermal Expansion Valve

• Variable Speed ECM Motor

• Low Voltage Pigtail Connections

• Draw Through Design

• Horizontal Drain Pan

• Single Color

• Fused 24V Power

• 5 Year Base Limited Warranty

• 10 Year Registered Limited Warranty

• Optional extended warranty available

• The TruComfort™ Variable Speed Air Handler is compatible with variable-speed air conditioners and heat pumps using the newest refrigerant, R-454B with a lower global warming potential (GWP).
• The all-aluminum coil and corrosion-resistant finish mean this unit is built to last. The efficient variable speed motor with Comfort-R™ technology and Vortica™ Blower delivers energy-efficient heating and cooling.
• HVAC zoning with Trane Link™ connectivity to a compatible air conditioner or heat pump gives you precise temperature and humidity control in every corner of your home – upstairs or downstairs. No more hot or cold spots.

Base Limited Warranty Period: Compressor, Outdoor Coil, Parts - 5 years

Registered Limited Warranty Period: Compressor - 12 years, Outdoor Coil, Parts - 10 years*

Limited Warranty Period for Commercial Applications: Compressor - 5 years, Coil, Parts - 1 year

YES

General

This unit is designed to operate at outdoor ambient temperatures from 55° F to 120° F in cooling. From —0° F to 66° F in heating (heat pumps only). Only AHRI approved indoor matches are approved for use with these models.

TRANE Link Air Conditioners

This outdoor unit contains the TRANE Link Air Conditioners digital communication with Plug-n-Play set up.

Casing

Unit casing is constructed of heavy gauge. G60 galvanized steel and painted with a weather-resistant powder paint onall louvered panels and prepaint on all other panels. Corrosion and weatherproof CMBP-G30 DuraTuff™ base.

Refrigerant Controls

Refrigeration system controls include condenser fan, compressor inverter drive and high and low pressure switches. A factory supplied, field installed filter is standard.

Compressor

Inverter driven compressor with variable output capacities. Noise enclosure minimizes sound levels. Compressor protections reduce operating speed and current draw to maintain operation while protecting the compressor.

Condenser Coil

The Spine Fin™ outdoor coil provides low airflow resistance and efficient heat transfer. The coil is protected on all four sides by louvered panels.

Low Ambient Cooling

As manufactured, this system has built in freeze protection that will allow cooling operation below 55°F but will reduce capacity or shut down completely to prevent operation under adverse conditions.

Comfort Control

This system must include a HUI2360A200U thermostat and a TSYSC60A2VVU system controller to operate and is Link communicating only.
