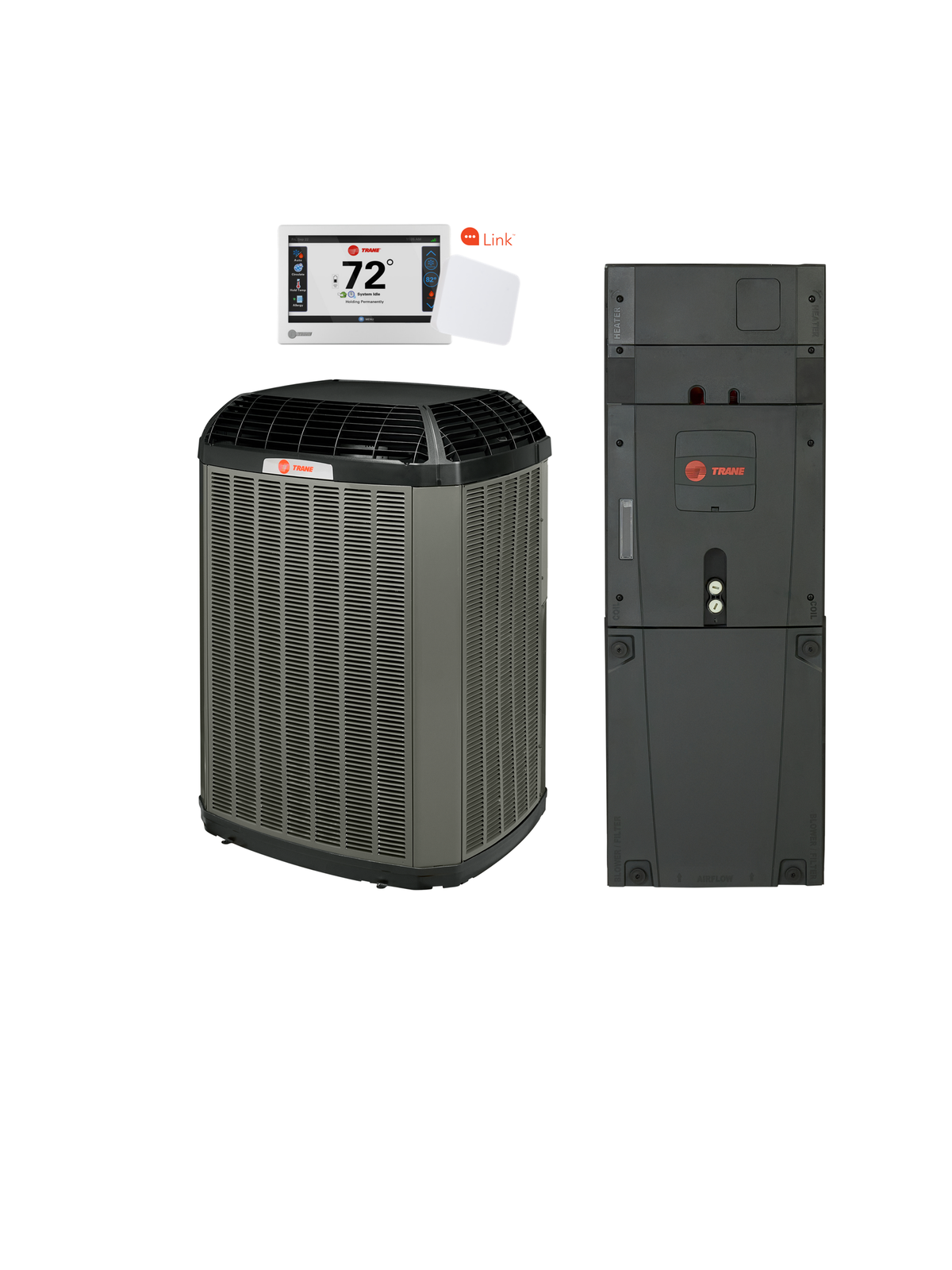

TRANE 2 Ton TruComfort Variable Speed AC System - 5TTV0X24A1000 - 5TAMXB02AV21D
TRANE 2 Ton TruComfort Variable Speed AC System - 5TTV0X24A1000 - 5TAMXB02AV21D
Key specifications
- Brand
- Trane
- Ton Size
- 2 Ton
- Compressor
- Variable
- Model numbers
- 5TTV0X24A1000 5TAMXB02AV21D TLINK360A2VVU BAYEA1305BK1A
Systems sold with required licensed installation. Installation is priced separately.
Couldn't load pickup availability
TRANE 2 Ton TruComfort™ Variable Speed AC System with WeatherGuard™ 21.0 SEER2.
The 20 TruComfort™ Variable Speed Air Conditioner with WeatherGuard™ maintains consistent temperatures in your home by running at lower speeds for longer periods. This maximizes efficiency and minimizes electricity use by working at just the right level to keep you comfortable.
5TTV0X24A1000 - 5TTV0X - Premier Series 20 SEER2 Variable Speed Air Conditioner w/ R-454B Refrigerantwith WeatherGuard Hi-Efficiency Variable Speed Communicating Air Conditioning System with Trane Link.
5TAMXB02AV21D - 5TAMX Hyperion Variable Speed AirHandle.Trane most efficient model, Trane® Hyperion TAMX, includes innovative Trane Link technology to control all of the system components.
TLINK360A2VVU - Trane Link UX360 Smart Thermostat & SC360 System Controller Kit.UX360 Smart Thermostat serves as the heart of your Trane Link system.
BAYEA1305BK1A - Heater Kit 5 kW.
Mechanical Specification Options
Mechanical Specification Options
General
This unit is designed to operate at outdoor ambient temperatures from 55° F to 120° F in cooling. From — 0° F to 66° F in heating (heat pumps only). Only AHRI approved indoor matches are approved for use with these models.
TRANE Link Air Conditioners
This outdoor unit contains the TRANE Link Air Conditioners digital communication with Plug-nPlay set up.
Casing
Unit casing is constructed of heavy gauge. G60 galvanized steel and painted with a weatherresistant powder paint on all louvered panels and prepaint on all other panels. Corrosion and weatherproof CMBP-G30 DuraTuff™ base. WeatherGuard™II Top Shields Unit.
Refrigerant Controls
Refrigeration system controls include condenser fan, compressor inverter drive and high and low pressure switches. A factory supplied, field installed filter is standard.
Compressor
Inverter driven compressor with variable output capacities. Noise enclosure minimizes sound levels. Compressor protections reduce operating speed and current draw to maintain operation while protecting the compressor.
Condenser Coil
The Spine Fin™ outdoor coil provides low airflow resistance and efficient heat transfer. The coil is protected on all four sides by louvered panels. SeaCoast Shield.
Low Ambient Cooling
As manufactured, this system has built in freeze protection that will allow cooling operation below 55°F but will reduce capacity or shut down completely to prevent operation under adverse conditions. Comfort Control
This system must include a A/T HUI2360A200U thermostat and a TSYS2C60A2VVU system controller to operate and is Link communicating only.
Hyperion™ Air Handler Specifications
Hyperion™ Air Handler Specifications
The Hyperion™ Variable Speed Air Handler harnesses Trane’s industry-leading innovation for ultimate comfort and convenience. Features include:
R-454B compatibility
Trane Link® communicating technology
SmartCharge™ automatic refrigerant recharging
Condensation-eliminating design
Variable-speed Vortica™ blower motor
Comfort-R™ technology for humidity control
All-aluminum epoxy-coated evaporator coil
Hydronic and electric heating options
TLINK 360
TLINK 360
It’s easily accessible from a smartphone, tablet or computer, which makes adjusting the temperature or energy use for your family’s comfort a breeze. The SC360 System Controller works in conjunction with the Trane Link system components to enable centralized decision making, self-configuration, improved accuracy, enhanced dehumidification, and enhanced maintenance of the HVAC system operation. Zoning capable.
5TAMX
5TAMX
The top-of-the line Trane Hyperion air handler represents a significant advance in technology and whole-home comfort using 14 industry-exclusive patents. These exclusive components include ultra-quiet, efficient Vortica™ Blowers and all-aluminum epoxy-coated coils, which offer longer life and superior odor prevention compared to conventional copper and aluminum coils.Fully enclosed insulation and double-wall cabinets ensure quiet,energy-efficient performance, while minimizing airborne dust and condensation that can cause mold and mildew.
5TTV0X
5TTV0X
This air conditioner uses R-454B, a new low-GWP and more sustainable refrigerant to cool your home.This highly energy-efficient AC unit boasts a SEER2 of up to 24 and an EER2 up to 14 for optimal cooling efficiency even in extreme heat. This unit connects to the Link™ Communicating System Controller and Smart Thermostat to promote optimal system performance.
