TRANE 5 Ton 17.1 SEER2 Air Conditioning System - 5TTR7060A1000 - 5TEM6D06AV41S
TRANE 5 Ton 17.1 SEER2 Air Conditioning System - 5TTR7060A1000 - 5TEM6D06AV41S
Key specifications
- Brand
- Trane
- Ton Size
- 5 Ton
- Efficiency
- 17.1 SEER2
- Compressor
- Variable
- ENERGY STAR®
- YES
- Model numbers
- 5TTR7060A1000 5TEM6D06AV41S
Systems sold with required licensed installation. Installation is priced separately.
Couldn't load pickup availability

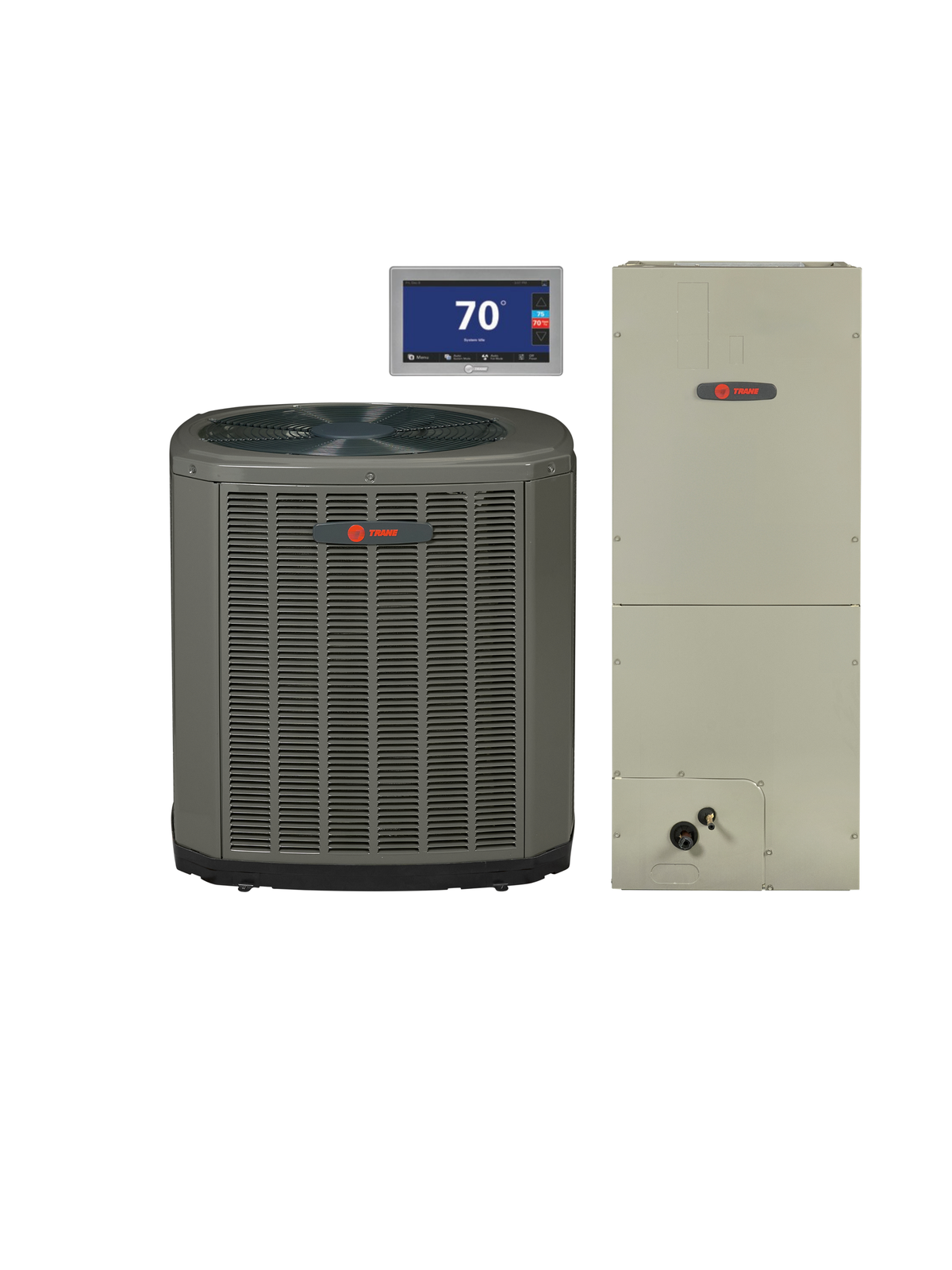

TRANE 5 Ton Multi-Speed Air Conditioning System - 17.1 SEER2.
5TTR7060A1000 - Trane Multi-Speed Air Conditioner.The new 17 Multi-Speed Air Conditioner uses a newer, lower GWP refrigerant, and is a bridge between a traditional two-stage air conditioner and a premium variable-speed AC unit.Inverter-driven, multi-speed technology gives you higher efficiency, additional operating speeds, and more cooling capacity at extreme temperatures when compared with a two-stage unit. This unit also offers enhanced humidity control.
With a SEER2 of up to 17.1 and EER2 of up to 12.5 combined with an inverter compressor, this energy-efficient air conditioner maximizes efficiency and comfort for a lower cost than a variable speed system.
5TEM6D06AV41S - 5TEM6 Multi-Position, Variable Speed Air Handler.The Variable Speed Air Handler is compatible with equipment using the newest refrigerant, R-454B, with a lower global warming potential (GWP).The Vortica™ Blower uses less energy than conventional blowers to deliver more air, while reducing carbon emissions and noise.Efficient variable speed motor with Comfort-R™ technology, all-aluminum coil, and corrosion resistance mean this unit will provide long-lasting performance at a budget-friendly price.
XL824 SMART THERMOSTAT - The XL824 brings innovative and user-friendly technology to your home, keeping your family and your guests at the optimal temperature in every season. Compatible with most traditional HVAC systems, the wi-fi-enabled smart thermostat comes fully equipped with Trane diagnostics so you can ensure your HVAC system is running at its best. Boasting a colorful touchscreen and a smart home hub, the XL824 is accessible on your mobile device for the ultimate smart home experience.
Mechanical Specification 5TTR7
Mechanical Specification 5TTR7
General
This unit is designed to operate at outdoor ambient temperatures from 55° F to 120° F in cooling. From –0° F to 66° F in heating (heat pumps only). Only AHRI approved indoor matches are approved for use with these models.
Casing
Unit casing is constructed of heavy gauge. G60 galvanized steel and painted with a weatherresistant powder paint on all louvered panels and prepaint on all other panels. Corrosion and weatherproof CMBP-G30 DuraTuff™ base.
Refrigerant Controls
Refrigeration system controls include condenser fan, compressor inverter drive, and high and low pressure switches. A factory supplied, field installed filter is standard.
Compressor
Inverter driven compressor with variable output capacities. Compressor protections reduce operating speed and current draw to maintain operation while protecting the compressor.
Condenser Coil
The Spine Fin™ outdoor coil provides low airflow resistance and efficient heat transfer. The coil is protected on all four sides by louvered panels.
Low Ambient Cooling
As manufactured, this system has built in freeze protection that will allow cooling operation below 55° F but will reduce capacity or shutdown completely to prevent operation under adverse conditions.
Warranties
Warranties
Base Limited Warranty Period: Compressor, Outdoor Coil, Parts - 5 years.
Registered Limited Warranty Period: Compressor, Outdoor Coil, Parts - 10 years.
Limited Warranty Period for Commercial Applications: Compressor - 5 years, Coil, Parts - 1 year.
Features and Benefits 5TEM6
Features and Benefits 5TEM6
• Metal cabinet with captured foil face insulation
• 2% or less air leakage
• R-4.2 Insulating Value
• Multi-Position UP/Down Flow, Horizontal Left /Right
• ALL Aluminum Coil
• Electric Heaters with polarized plug connections (sold as accessory)
• R-454B Thermal Expansion Valve
• Variable Speed ECM Motor
• Low Voltage Pigtail Connections
• Draw Through Design
• Horizontal Drain Pan
• Single Color
• Fused 24v Power
• 5 Year Base Limited Warranty
• 10 Year Registered Limited Warranty
• Optional extended warranty available
XL824 SMART THERMOSTAT
XL824 SMART THERMOSTAT
This Wi-Fi enabled, 7 day programmable smart thermostat is compatible with most traditional HVAC systems. Built in bridge helps you reduce your energy consumption remotely from a web enabled smartphone, tablet or computer. ENERGY STAR CERTIFIED
ENERGY STAR® qualified
ENERGY STAR® qualified
YES
