TRANE 3.5 Ton Heat Pump System 14.3 SEER2 - 5TWR4042A1000 - 5TEM4D04AC31S
TRANE 3.5 Ton Heat Pump System 14.3 SEER2 - 5TWR4042A1000 - 5TEM4D04AC31S
Key specifications
- Brand
- Trane
- Ton Size
- 3.5 Ton
- Efficiency
- 14.3 SEER2
- Compressor
- Single-Stage
- Model numbers
- 5TWR4042A1000 5TEM4D04AC31S
Systems sold with required licensed installation. Installation is priced separately.
Couldn't load pickup availability

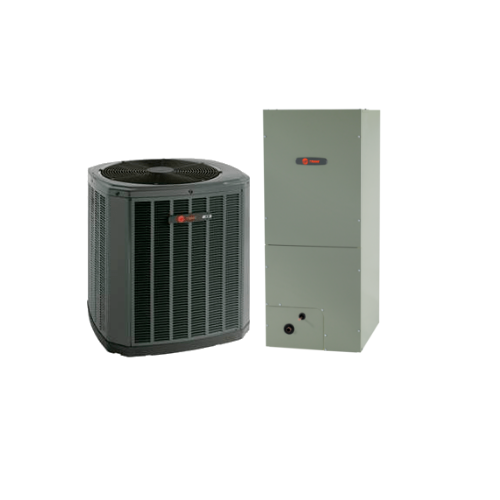

TRANE 3.5 Ton Heat Pump System 14.3 SEER2.
5TWR4042A1000 - 5TWR4 - Single Stage Heat Pump.
5TEM4D04AC31S - 5TEM4 - Multi-Speed Multi-Position Air Handler.The 5TEM4 series air handler is designed for installation in a closet, utility room, alcove, basement, crawlspace or attic. These versatile units are applicable to air conditioning and heat pump applications. Several models are available to meet the specific requirements of the outdoor equipment. Field installed electric resistance heaters are available.
The 14 Single-Stage Heat Pump uses next-generation refrigerant technology to maximize your comfort year-round while innovating for a sustainable future.
Warranties
Warranties
Registered Limited Warranty Period: Compressor, Outdoor Coil, Parts - 10 years.
Limited Warranty Period for Commercial Applications: Compressor - 5 years, Coil, Parts - 1 year.
Mechanical Specification Options
Mechanical Specification Options
- General
The outdoor condensing units are factory charged with the system charge required for the outdoor condensing unit, ten (10) feet of tested connecting line, and the smallest rated indoor evaporative coil match. This unit is designed to operate at outdoor ambient temperatures as high as 115°F. Cooling capacities are matched with a wide selection of air handlers and furnace coils that are AHRI certified. The unit is certified to UL 60335-2-40. Exterior is designed for outdoor application.
- Casing
Unit casing is constructed of heavy gauge, galvanized steel and painted with a weather-resistant powder paint finish. The corner panels are prepainted. All panels are subjected to our 1,000 hour salt spray test.
- Refrigerant Controls
Refrigeration system controls include condenser fan, compressor contactor and low and high pressure switches. A factory supplied, field installed liquid line drier is standard.
- Compressor
The compressor features internal over temperature and pressure protection. Other features include: Centrifugal oil pump and low vibration and noise.
- Condenser Coil
The outdoor coil provides low airflow resistance and efficient heat transfer. The coil is protected on all four sides by louvered panels.
- Low Ambient Cooling
As manufactured, this system has a cooling capacity to 55°F. The addition of an evaporator defrost control permits operation to 40°F. The addition of an evaporator defrost control with TXV permits low ambient cooling to 30°F. The addition of the BAYLOAM107A low ambient kit permits ambient cooling to 20°F.
- Thermostats
Cooling only and heat/cooling (manual and automatic change over). Sub-base to match thermostat and locking thermostat cover.
Features and Benefits Convertible Air Handlers
Features and Benefits Convertible Air Handlers
- Painted metal cabinet with captured foil face insulation.
- 2% or less air leakage.
- R-4.2 Insulating Value.
- Multi-Position UP/Down Flow, Horizontal Left /Right.
- ALL Aluminum Coil.
- Electric Heaters with polarized plug connections (sold as accessory).
- R-454B Thermal Expansion Valve.
- ECM Motor.
- Low Voltage Pigtail Connections.
- Draw Through Design.
- Horizontal Drain pan.
- Fused 24V Power.
