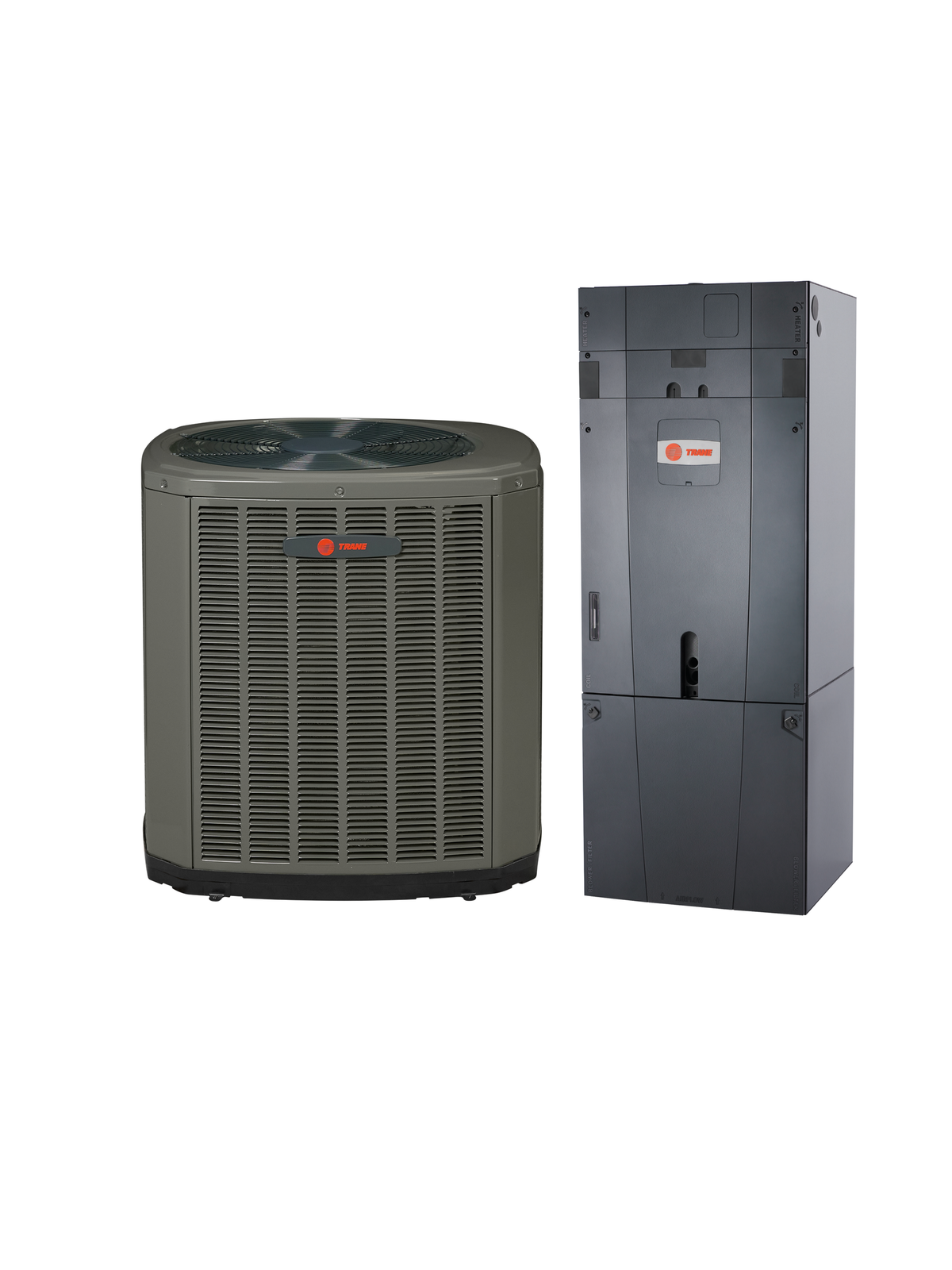

TRANE 2 Ton AC System 17.1 SEER2 - 5TTR7024A1000 - 5TAM5B02AC21S
TRANE 2 Ton AC System 17.1 SEER2 - 5TTR7024A1000 - 5TAM5B02AC21S
Key specifications
- Brand
- Trane
- Ton Size
- 2 Ton
- Efficiency
- 17.1 SEER2
- Compressor
- Variable
- Labor warranty (with installation)
- Up to 10 years
- Model numbers
- 5TTR7024A1000 5TAM5B02AC21S
Systems sold with required licensed installation. Installation is priced separately.
Couldn't load pickup availability
TRANE 2 Ton Multi-Speed Air Conditioning System - 17.1 SEER2.
5TTR7024A1000 - Trane Multi-Speed Air Conditioner.The new 17 Multi-Speed Air Conditioner uses a newer, lower GWP refrigerant, and is a bridge between a traditional two-stage air conditioner and a premium variable-speed AC unit.Inverter-driven, multi-speed technology gives you higher efficiency, additional operating speeds, and more cooling capacity at extreme temperatures when compared with a two-stage unit. This unit also offers enhanced humidity control.With a SEER2 of up to 17.1 and EER2 of up to 12.5 combined with an inverter compressor, this energy-efficient air conditioner maximizes efficiency and comfort for a lower cost than a variable speed system.
5TAM5B02AC21S - Multi-Speed Air Handlers with Epoxy Coated Coil.The all-aluminum, epoxy-coated coil is more durable than traditional copper coils. And the groundbreking epoxy coating helps prevent residue and odors. The positive-pressure cabinet keeps unwanted air out of the unit, aiding in efficiency and durability.The exclusive Trane Vortica™ blower and fully insulated, double-walled cabinet provides you with with reliable, ultra-quiet operation.Tough, double-wall construction and enclosed foam insulation virtually eliminates sweating and condensation. Less moisture and fewer dust particles are drawn in from garages, attics or crawl spaces, helping improve indoor air quality.
The Trane Hyperion™ Air Handler is compatible with heat pumps and AC units using the newest refrigerant, R-454B with a lower global warming potential (GWP).
Mechanical Specification 5TTR7
Mechanical Specification 5TTR7
General
This unit is designed to operate at outdoor ambient temperatures from 55° F to 120° F in cooling. From –0° F to 66° F in heating (heat pumps only). Only AHRI approved indoor matches are approved for use with these models.
Casing
Unit casing is constructed of heavy gauge. G60 galvanized steel and painted with a weatherresistant powder paint on all louvered panels and prepaint on all other panels. Corrosion and weatherproof CMBP-G30 DuraTuff™ base.
Refrigerant Controls
Refrigeration system controls include condenser fan, compressor inverter drive, and high and low pressure switches. A factory supplied, field installed filter is standard.
Compressor
Inverter driven compressor with variable output capacities. Compressor protections reduce operating speed and current draw to maintain operation while protecting the compressor.
Condenser Coil
The Spine Fin™ outdoor coil provides low airflow resistance and efficient heat transfer. The coil is protected on all four sides by louvered panels.
Low Ambient Cooling
As manufactured, this system has built in freeze protection that will allow cooling operation below 55° F but will reduce capacity or shutdown completely to prevent operation under adverse conditions.
Warranties
Warranties
Base Limited Warranty Period: Compressor, Outdoor Coil, Parts - 5 years
Registered Limited Warranty Period: Compressor, Outdoor Coil, Parts - 10 years.
Limited Warranty Period for Commercial Applications: Compressor - 5 years, Coil, Parts - 1 year
Hyperion™ Air Handler Specifications
Hyperion™ Air Handler Specifications
Trust Trane to build high-quality air handlers utilizing industry-leading components. The Hyperion™ Air Handler includes:
-
R-454B equipment compatibility
-
All-aluminum epoxy-coated coil
-
Efficient cabinet design
-
Fully enclosed insulation
-
UVC light kit available as an accessory
-
Vortica™ blower
-
Integrated dual slope drain pan
-
Hydronic and electric heating options
-
Corrosion-resistant finish
Features and Benefits Hyperion Air Handler
Features and Benefits Hyperion Air Handler
• Unique cabinet design
– Double Wall Foamed and Formed Cabinet System
– Water Proof Cabinet Design
– R-4.2 Insulating Value (Avg Insulating Value R-8.2)
– Composite Cabinet Doors
– Sweat Eliminating Cabinet Design
– Loose Fiber Eliminating Cabinet Design
– Smooth Cleanable Cabinet Design
– 2% or Less Air Leakage
– Precision Durable Door Seals
– Modular Cabinet
• Multi-position up/down flow horizontal left/right
• Phillips head door fasteners
• Side Return Option
• Refrigerant Connections
• Condensate Connections
• Premarked Conduit Connection Locations
• Vortica® Blower with Integrated Slide Deck for Easy Removal
• Polarized Plug connections on Blower
• Aluminum Coil with Integrated Slide Deck for Easy Removal
• Slide in Electric Heaters with polarized plug connections (sold as accessory)
• Polarized Plug connections for Electric Heater
• UVC light kit with safety switch and polarized plug connections (sold as accessory)
• Labeled Panels and connections
• 1 1/4" to 1" And 3/4" to 1/2" Conduit connection on Left, Right and Top • Molded in 1" Standard Filter rail
• R-454B Thermal Expansion Valve
• Low Voltage Pigtail Connections
• Enhanced Coil Fin Patented
• Blow Through Design
• High Efficiency ECM Motor
• Maximum Width of 23.5"
• Compact 20.8" depth with doors removed
• Integrated Horizontal Drain pans
• Soft start fan motor operation
• Single Color
• Fused 24V Power
• 5 Year Warranty
• 10 Year Warranty Registered
• Optional Extended Warranty Available
