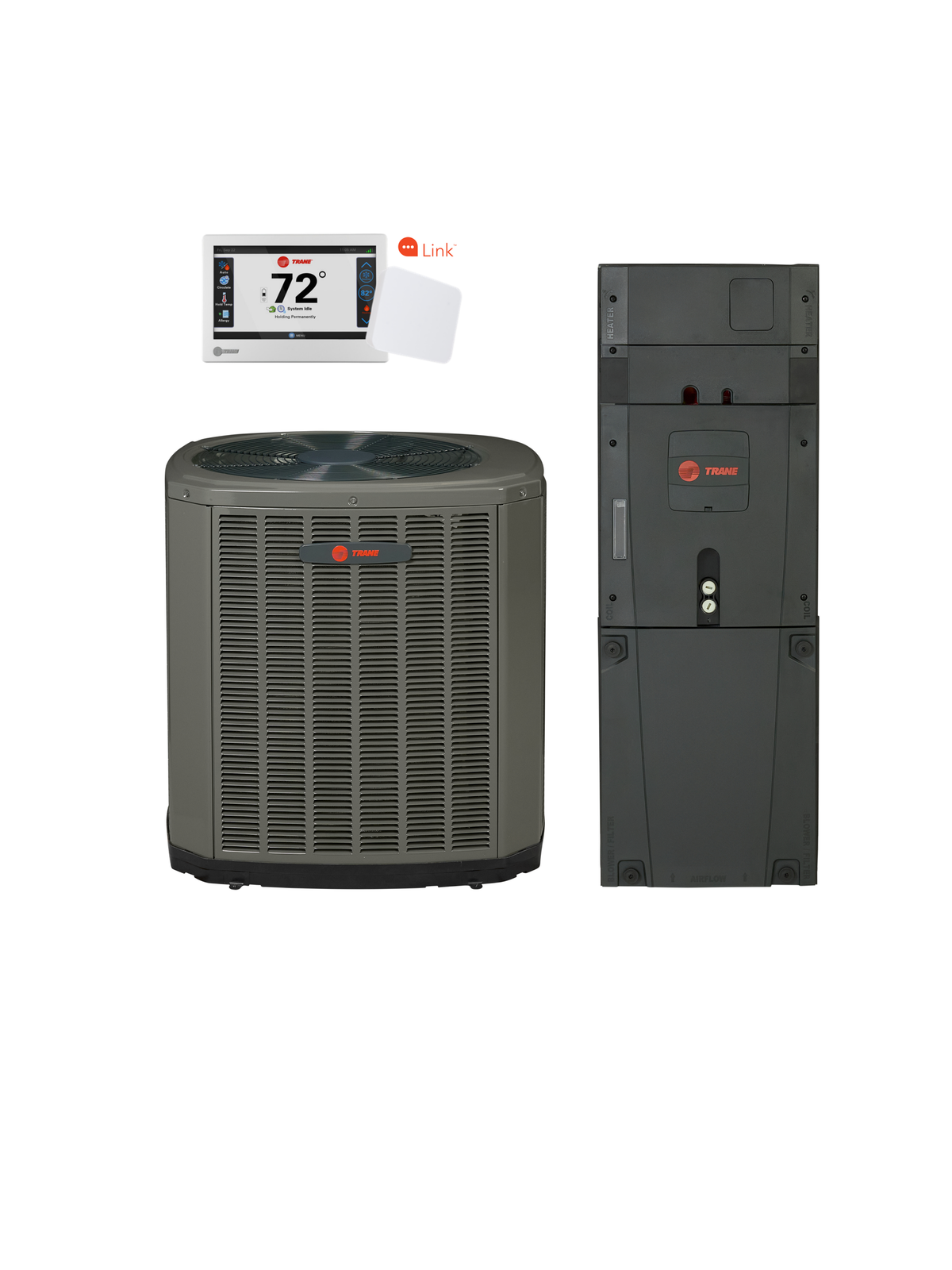

TRANE 18 TruComfort - 5 Ton AC System - 5TTV8X60A1000 - 5TAMXD06AV41D
TRANE 18 TruComfort - 5 Ton AC System - 5TTV8X60A1000 - 5TAMXD06AV41D
Key specifications
- Brand
- Trane
- Ton Size
- 5 Ton
- Efficiency
- 18.1 SEER2
- Compressor
- Variable
- Labor warranty (with installation)
- Up to 10 years
- Model numbers
- 5TTV8X60A1000 5TAMXD06AV41D 5TTV8X60A1000A TLINK360A2VVU
Systems sold with required licensed installation. Installation is priced separately.
Couldn't load pickup availability
TRANE 5 Ton AC System 5TTV8X60A1000A - 18.1 SEER2 - TRANE 18 TruComfort™ Variable Speed Compressor.
5TTV8X60A1000 - TRANE 5 Ton TruComfort - Link Variable Speed Air Conditioner.The 18 TruComfort™ Variable Speed Air Conditioner uses the newest refrigerant, R-454B, with a lower global warming potential (GWP).
Rating up to 18.1 SEER2, this variable speed air conditioner offers increased cooling efficiency. With a variable speed compressor, this Trane AC unit can run anywhere from 30-100% capacity, so it only uses the energy it needs.
5TAMXD06AV41D - 5TAMX Hyperion Variable Speed AirHandle.Trane most efficient model, Trane® Hyperion TAMX, includes innovative Trane Link technology to control all of the system components.
The top-of-the line Trane Hyperion air handler represents a significant advance in technology and whole-home comfort using 14 industry-exclusive patents. These exclusive components include ultra-quiet, efficient Vortica™ Blowers and all-aluminum epoxy-coated coils, which offer longer life and superior odor prevention compared to conventional copper and aluminum coils.Fully enclosed insulation and double-wall cabinets ensure quiet,energy-efficient performance, while minimizing airborne dust and condensation that can cause mold and mildew.
TLINK360A2VVU - Trane Link UX360 Smart Thermostat & SC360 System Controller Kit.UX360 Smart Thermostat serves as the heart of your Trane Link system. It’s easily accessible from a smartphone, tablet or computer, which makes adjusting the temperature or energy use for your family’s comfort a breeze. The SC360 System Controller works in conjunction with the Trane Link system components to enable centralized decision making, self-configuration, improved accuracy, enhanced dehumidification, and enhanced maintenance of the HVAC system operation. Zoning capable.
Hyperion™ Variable Speed Air Handler Specification
Hyperion™ Variable Speed Air Handler Specification
The Hyperion™ Variable Speed Air Handler harnesses Trane’s industry-leading innovation for ultimate comfort and convenience. Features include:
R-454B compatibility
Trane Link® communicating technology
SmartCharge™ automatic refrigerant recharging
Condensation-eliminating design
Variable-speed Vortica™ blower motor
Comfort-R™ technology for humidity control
All-aluminum epoxy-coated evaporator coil
Hydronic and electric heating options
Features and Benefits
Features and Benefits
• Unique cabinet design
– 2% or less air leakage
– Precision applied
— durable door seals
– Specially designed air seal around refrigerant, condensate and conduit connections
– Double wall foamed cabinet system
– R-4.2 Insulating Value (Avg Insulating Value R8.2)
– No loose fiber design
– Smooth cleanable interior design
– Sweat eliminating design
– Composite foamed cabinet doors
– Water proof cabinet design
– Integrated horizontal drain pans
– Modular cabinet
• Multi-position up/down flow horizontal left/right
• Link™ Communicating or 24V Control
• Side return option (sold as accessory)
• Pre-marked Conduit Connection Locations
• Alert code notification
• Low voltage terminal connection point
• Phillips head door fasteners
• Vortica® blower with polarized plug connections and integrated slide deck for easy removal
• Aluminum coil with integrated slide deck for easy removal and polarized plug connections on coil EEV
• Patented enhanced coil fin
• Electronic Expansion Valve (EEV) with low ambient and low superheat compressor protection
• Slide in electric heaters with polarized plug connections (sold as accessory)
• Slide in hot water coils with polarized plug connections (sold as accessory)
• UVC light kit with safety switch and polarized plug connections (sold as accessory)
• Labeled panels and connections
• Molded in 1” standard filter rail
• Variable speed ECM motor
• Soft start fan motor operation
• Comfort R™mode
• Built in fan delay modes
• Maximum width of 23.5”
• Compact 20.8” depth with doors removed
• Fused 24V power
• 5 Year Warranty
• 10 Year Warranty Registered
• Optional Extended Warranty Available
Warranties
Warranties
Base Limited Warranty Period: Compressor, Outdoor Coil, Parts - 5 years
Registered Limited Warranty Period: Compressor - 12 years, Outdoor Coil, Parts - 10 years*
Limited Warranty Period for Commercial Applications: Compressor - 5 years, Coil, Parts - 1 year
Link
Link
Select models include innovative Trane Link technology, which uses Bluetooth to communicate between system components. Simply opt in through the Trane Home app to have your system’s data remotely monitored for even the slightest system changes—letting you relax and enjoy the exceptional comfort your variable speed system provides
TRANE Link Variable Speed Air Conditioner
TRANE Link Variable Speed Air Conditioner
General
This unit is designed to operate at outdoor ambient temperatures from 55° F to 120° F in cooling. From —0° F to 66° F in heating (heat pumps only). Only AHRI approved indoor matches are approved for use with these models.
TRANE Link Air Conditioners
This outdoor unit contains the TRANE Link Air Conditioners digital communication with Plug-n-Play set up.
Casing
Unit casing is constructed of heavy gauge. G60 galvanized steel and painted with a weather-resistant powder paint onall louvered panels and prepaint on all other panels. Corrosion and weatherproof CMBP-G30 DuraTuff™ base.
Refrigerant Controls
Refrigeration system controls include condenser fan, compressor inverter drive and high and low pressure switches. A factory supplied, field installed filter is standard.
Compressor
Inverter driven compressor with variable output capacities. Noise enclosure minimizes sound levels. Compressor protections reduce operating speed and current draw to maintain operation while protecting the compressor.
Condenser Coil
The Spine Fin™ outdoor coil provides low airflow resistance and efficient heat transfer. The coil is protected on all four sides by louvered panels.
Low Ambient Cooling
As manufactured, this system has built in freeze protection that will allow cooling operation below 55°F but will reduce capacity or shut down completely to prevent operation under adverse conditions.
Comfort Control
This system must include a HUI2360A200U thermostat and a TSYSC60A2VVU system controller to operate and is Link communicating only.
Noise Level
Noise Level
67 - 76
