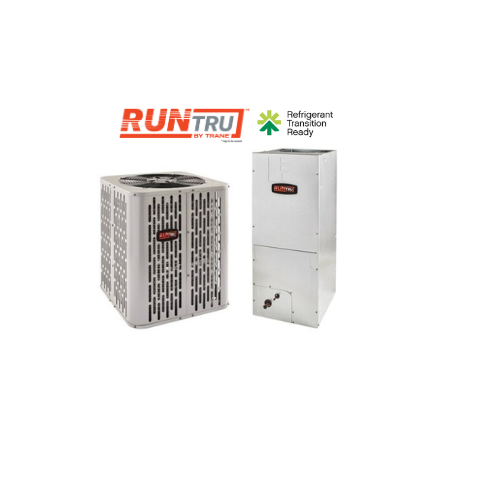

RunTru by Trane 5 Ton AC System 15.2 SEER2 A5AC5060A1000 A5AHC007A1D30A
RunTru by Trane 5 Ton AC System 15.2 SEER2 A5AC5060A1000 A5AHC007A1D30A
Key specifications
- Brand
- RunTru by Trane
- Ton Size
- 5 Ton
- Efficiency
- 15.2 SEER2
- Compressor
- Single-Stage
- Model numbers
- A5AC5060A1000 A5AHC007A1D30A
Systems sold with required licensed installation. Installation is priced separately.
Couldn't load pickup availability
RunTru by Trane 5 Ton Air Conditioning system 15.2 SEER2.
A5AC5060A1000 - R-454B Air Conditioner, All Aluminum Coil, 24V System Control, 208-230/1/60.
A5AHC007A1D30A - Convertible Air Handler R-454B, All-Aluminum Plate Fin Coil, 4-Way Poise, 24V System Control, 208-230/1/60.
Experience summer comfort with A5AC5, the budget-friendly, efficient air conditioner that uses a more sustainable refrigerant and ensures quiet, high-performance cooling at 71-73 decibels.
Warranties
Warranties
Base Limited Warranty Period: Compressor, Outdoor Coil, Parts - five (5) years.
Registered Limited Warranty Period: Compressor, Outdoor Coil, Parts - ten (10) years.
Product Registration and Registration Transfer exclusions vary in the US from state to state and in Canada from province to province. To determine if there are specific exclusions for your state or province check your local laws.
Please reference the limited warranty document that is shipped with the equipment for exact warranty details.
Mechanical Specification Options A5AC5
Mechanical Specification Options A5AC5
General
The outdoor condensing units are factory charged with the system charge required for the outdoor condensing unit, ten (10) feet of tested connecting line, and the smallest rated indoor evaporative coil match. This unit is designed to operate at outdoor ambient temperatures as high as 115°F. Cooling capacities are matched with a wide selection of air handlers and furnace coils that are AHRI certified. The unit is certified to UL 60335-2-40. Exterior is designed for outdoor application.
Casing
Unit casing is constructed of heavy gauge, galvanized steel and painted with a weather-resistant powder paint finish. The corner panels are prepainted. All panels are subjected to our 1,000 hour salt spray test .
Refrigerant
Controls Refrigeration system controls include condenser fan, compressor contactor and low and high pressure switches.
Compressor
The compressor features internal over temperature and pressure protection. Other features include: Centrifugal oil pump and low vibration and noise.
Condenser Coil The outdoor coil provides low airflow resistance and efficient heat transfer. The coil is protected on all four sides by louvered panels.
Low Ambient Cooling
As manufactured, this system has a cooling capacity to 55°F. The addition of an evaporator defrost control permits operation to 40°F. The addition of an evaporator defrost control with TXV permits low ambient cooling to 30°F. The addition of the BAYLOAM108 low ambient kit permits ambient cooling to 20°F.
Thermostats
Cooling only and heat/cooling (manual and automatic change over). Sub-base to match thermostat and locking thermostat cover.
Elite performance
Elite performance
Stay cool no matter how high the temperatures are outside with RunTru’s efficient air conditioners that balance efficiency and cooling strength.
Built to last
Built to last
Designed and tested for long-lasting performance and reliability, RunTru's AC's feature durable, high-quality components and all-aluminum coils.
Humidity control
Humidity control
Improve your comfort and indoor air quality with an air conditioner that pulls heat and humidity out of your home with exceptionally quiet operation.
Energy Savings
Energy Savings
38%
