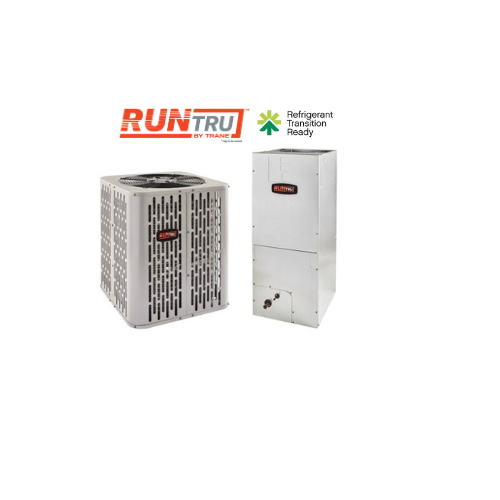

RunTru by Trane 4 Ton Variable Speed 16.0 SEER2 A5AC5048A1000 A5AHV006A1D30A

General

The outdoor condensing units are factory charged with the system charge required for the outdoor condensing unit, ten (10) feet of tested connecting line, and the smallest rated indoor evaporative coil match. This unit is designed to operate at outdoor ambient temperatures as high as 115°F. Cooling capacities are matched with a wide selection of air handlers and furnace coils that are AHRI certified. The unit is certified to UL 60335-2-40. Exterior is designed for outdoor application.

Casing

Unit casing is constructed of heavy gauge, galvanized steel and painted with a weather-resistant powder paint finish. The corner panels are prepainted. All panels are subjected to our 1,000 hour salt spray test .

Refrigerant Controls

Refrigeration system controls include condenser fan, compressor contactor and low and high pressure.

Compressor

The compressor features internal over temperature and pressure protection. Other features include: Centrifugal oil pump and low vibration and noise.

Condenser Coil

The outdoor coil provides low airflow resistance and efficient heat transfer. The coil is protected on all four sides by louvered panels.

Low Ambient Cooling

As manufactured, this system has a cooling capacity to 55°F. The addition of an evaporator defrost control permits operation to 40°F. The addition of an evaporator defrost control with TXV permits low ambient cooling to 30°F. The addition of the BAYLOAM108 low ambient kit permits ambient cooling to 20°F.

Thermostats

Cooling only and heat/cooling (manual and automatic change over). Sub-base to match thermostat and locking thermostat cover

• Base Limited Warranty Period: Compressor, Outdoor Coil, Parts - five (5) years.
• Registered Limited Warranty Period: Compressor, Outdoor Coil, Parts - ten (10) years.
• Product Registration and Registration Transfer exclusions vary in the US from state to state and in Canada from province to province. To determine if there are specific exclusions for your state or province check your local laws.
• Please reference the limited warranty document that is shipped with the equipment for exact warranty details.

• Painted metal cabinet with captured foil face insulation

• 2% or less air leakage

• R-4.2 Insulating Value

• Multi-Position UP/Down Flow, Horizontal Left /Right

• ALL Aluminum Coil

• Variable Speed ECM Motor

• Low Voltage Pigtail Connections

• Draw Through Design

• Horizontal Drain Pan

• Single Color

• Fused 24V Power

• 5 Year Warranty

• Optional extended warranty available

• Electric Heaters with polarized plug connections (sold as accessory)

• R-454B Thermal Expansion Valve

RATED VOLTS/PH/HZ 208-230/1/60

INDOOR COIL — Type Plate Fin

Refrigerant Control TXV

Drive - No. Speeds Direct - 16

No. Motors — H.P. 1 - 1/3

Motor Speed R.P.M. Variable
