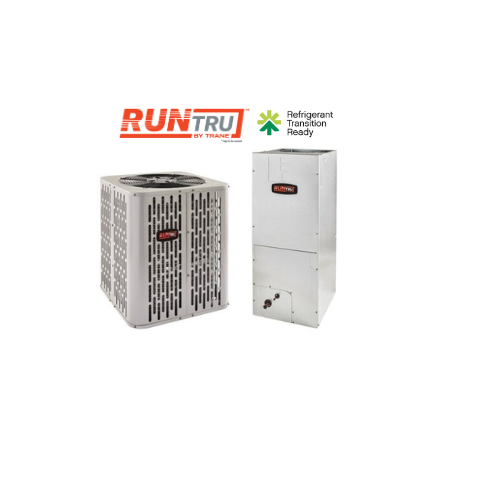

RunTrubyTrane 2.5Ton - AC System - 14.3 - SEER2 - A5AC4030A1000 - A5AHC003A1B30A

General

The outdoor condensing units are factory charged with the system charge required for the outdoor condensing unit, ten (10) feet of tested connecting line, and the smallest rated indoor evaporative coil match. This unit is designed to operate at outdoor ambient temperatures as high as 115°F. Cooling capacities are matched with a wide selection of air handlers and furnace coils that are AHRI certified. The unit is certified to UL 60335-2-40. Exterior is designed for outdoor application.

Casing

Unit casing is constructed of heavy gauge, galvanized steel and painted with a weather-resistant powder paint finish. The corner panels are prepainted. All panels are subjected to our 1,000 hour salt spray test .

Refrigerant Controls

Refrigeration system controls include condenser fan, compressor contactor and low and high pressure.

Compressor

The compressor features internal over temperature and pressure protection. Other features include: Centrifugal oil pump and low vibration and noise.

Condenser Coil

The outdoor coil provides low airflow resistance and efficient heat transfer. The coil is protected on all four sides by louvered panels.

Low Ambient Cooling

As manufactured, this system has a cooling capacity to 55°F. The addition of an evaporator defrost control permits operation to 40°F. The addition of an evaporator defrost control with TXV permits low ambient cooling to 30°F. The addition of the BAYLOAM108 low ambient kit permits ambient cooling to 20°F.

Thermostats

Cooling only and heat/cooling (manual and automatic change over). Sub-base to match thermostat and locking thermostat cover

• Base Limited Warranty Period: Compressor, Outdoor Coil, Parts - five (5) years.
• Registered Limited Warranty Period: Compressor, Outdoor Coil, Parts - ten (10) years.
• Product Registration and Registration Transfer exclusions vary in the US from state to state and in Canada from province to province. To determine if there are specific exclusions for your state or province check your local laws.
• Please reference the limited warranty document that is shipped with the equipment for exact warranty details.

Experience all-season comfort with this eco-friendly air handler, providing dependable operation year-round with a reduced environmental footprint.

• All-aluminum coil
• Factory-installed flow control to support ratings
• Fully insulated galvanized steel cabinet
• Multi-speed fan motors
• Assembled in Vidalia, Georgia
• Compatible with equipment using the newest refrigerant, R-454B, with a lower global warming potential (GWP)

Stay cool no matter how high the temperatures are outside with RunTru’s efficient air conditioners that balance efficiency and cooling strength.

Designed and tested for long-lasting performance and reliability, RunTru's AC's feature durable, high-quality components and all-aluminum coils.

Improve your comfort and indoor air quality with an air conditioner that pulls heat and humidity out of your home with exceptionally quiet operation.
