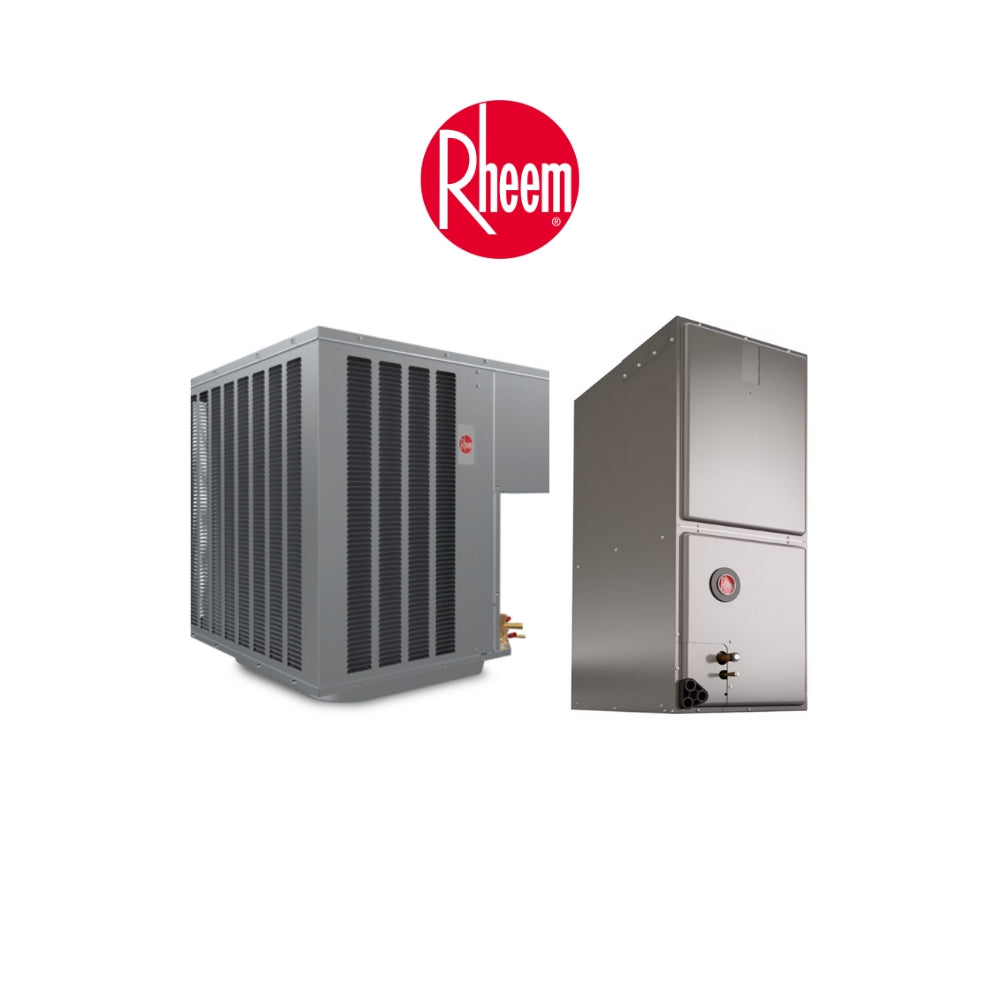

Rheem 2 Ton AC System 15.2 SEER2 - WA14AY24AJ1NA - RH2TY2417STANNJ
Rheem 2 Ton AC System 15.2 SEER2 - WA14AY24AJ1NA - RH2TY2417STANNJ
Key specifications
- Brand
- Rheem
- Ton Size
- 2 Ton
- Efficiency
- 15.2 SEER2
- Compressor
- Single-Stage
- Refrigerant
- R-454 B
- Model numbers
- WA14AY24AJ1NA RH2TY2417STANNJ RXBH-1724C05J-B
Systems sold with required licensed installation. Installation is priced separately.
Couldn't load pickup availability
Rheem Endeavor® Line Select™ Series iC Air Conditioning 2 Ton AC System - 15.2 SEER2
WA14AY24AJ1NA - 2 Ton, 13.8/14.3 SEER2 Air Conditioner, 1-Stage, R-454B, 208-230/1/60.
RH2TY2417STANNJ - RH2TY 2 Ton, 17.5" W, 2-Stage Multipoise Air Handler Constant Torque Motor, N-Coil, R-454B, 208-240/1/60
RXBH-1724C05J-B - Heater Kit, 5kW, 208-230/1/60 (Pullout Disconnect) With Smart Plug.
Features and Benefits Endeavor® Line Select™ Serie
Features and Benefits Endeavor® Line Select™ Serie
• Fully Louvered Steel Cabinet: Features durable construction to add protection from yard hazards, weather corrosion
• Optimized 7mm Coil Design: Allows for improved airflow, heat transfer and energy consumption
• Easily Accessible Control Box: Ease of installation and serviceability
• Designing for Sustainability with Low GWP: For 2025, the Environmental Protection Agency (EPA) has set a global warming potential (GWP) limit of 700 for refrigerant used in heating and cooling systems. This new requirement will result in a 78%1 lower GWP than previous-generation refrigerants — with only minimal changes to system installation. For us, this is another step toward our continued sustainability goal of reducing greenhouse gas emissions, while still delivering an exceptional level of energy efficient, dependable comfort
. • PlusOne® Refrigerant Detection System™2:
An integrated one-box, patented design featuring the A2L sensor and mitigation board, offering easier commissioning with a single component and simplified wiring configuration, compatibility with any 24V thermostat application and system protection by automatically pausing outdoor unit operation — if excess refrigerant is detected.
Cooling Efficiencies
Cooling Efficiencies
UP TO 15.2 SEER2
Refrigerant type
Refrigerant type
R-454 B
Endeavor® Line Air Handlers
Endeavor® Line Air Handlers
• Quiet Operation1:
Provided by a cabinet construction with 1.0 inch of foil faced insulation for quieter sound characteristics
• Aluminum Indoor Coil Design: Constructed of aluminum fins bonded to internally grooved aluminum tubing and are more corrosion resistant
• Versatile 4-Way Convertible Compact Design: Allow for upflow, downflow, horizontal left and horizontal right applications even in the smallest of spaces
• Rugged Steel, Compact Cabinet Construction: Designed for added strength and versatility
• Field Installed Auxiliary Heater Kits: Provide exact heat for indoor comfort and include circuit breakers which meet UL and cUL requirements for service disconnect
• Less than 2% Cabinet Air Leakage at 1-inch H2O: When tested in accordance with ASHRAE Standard 193
• Designing for Sustainability with Low GWP: For 2025, the Environmental Protection Agency (EPA) has set a global warming potential (GWP) limit of 700 for refrigerant used in heating and cooling systems. This new requirement will result in a 78%2 lower GWP than previous-generation refrigerants — with only minimal changes to system installation. For us, this is another step toward our continued sustainability goal of reducing greenhouse gas emissions, while still delivering an exceptional level of energy efficient, dependable comfort.
• PlusOne® Refrigerant Detection System™3: An integrated one-box, patented design featuring the A2L sensor and mitigation board, offering easier commissioning with a single component and simplified wiring configuration, compatibility with any 24V thermostat application and system protection by automatically pausing outdoor unit operation — if excess refrigerant is detected
