Rheem
Rheem 2.5 Ton AC System 15.2 SEER2 RA14AY30AJ1NALHP RB2TY2417STANMJB05
Rheem 2.5 Ton AC System 15.2 SEER2 RA14AY30AJ1NALHP RB2TY2417STANMJB05
Key specifications
- Brand
- Rheem
- Ton Size
- 2.5 Ton
- Efficiency
- 15.2 SEER2
- Compressor
- Single-Stage
- Model numbers
- RA14AY30AJ1NALHP RB2TY2417STANMJB05 RB2TY3621STANMJB05
Systems sold with required licensed installation. Installation is priced separately.
Couldn't load pickup availability

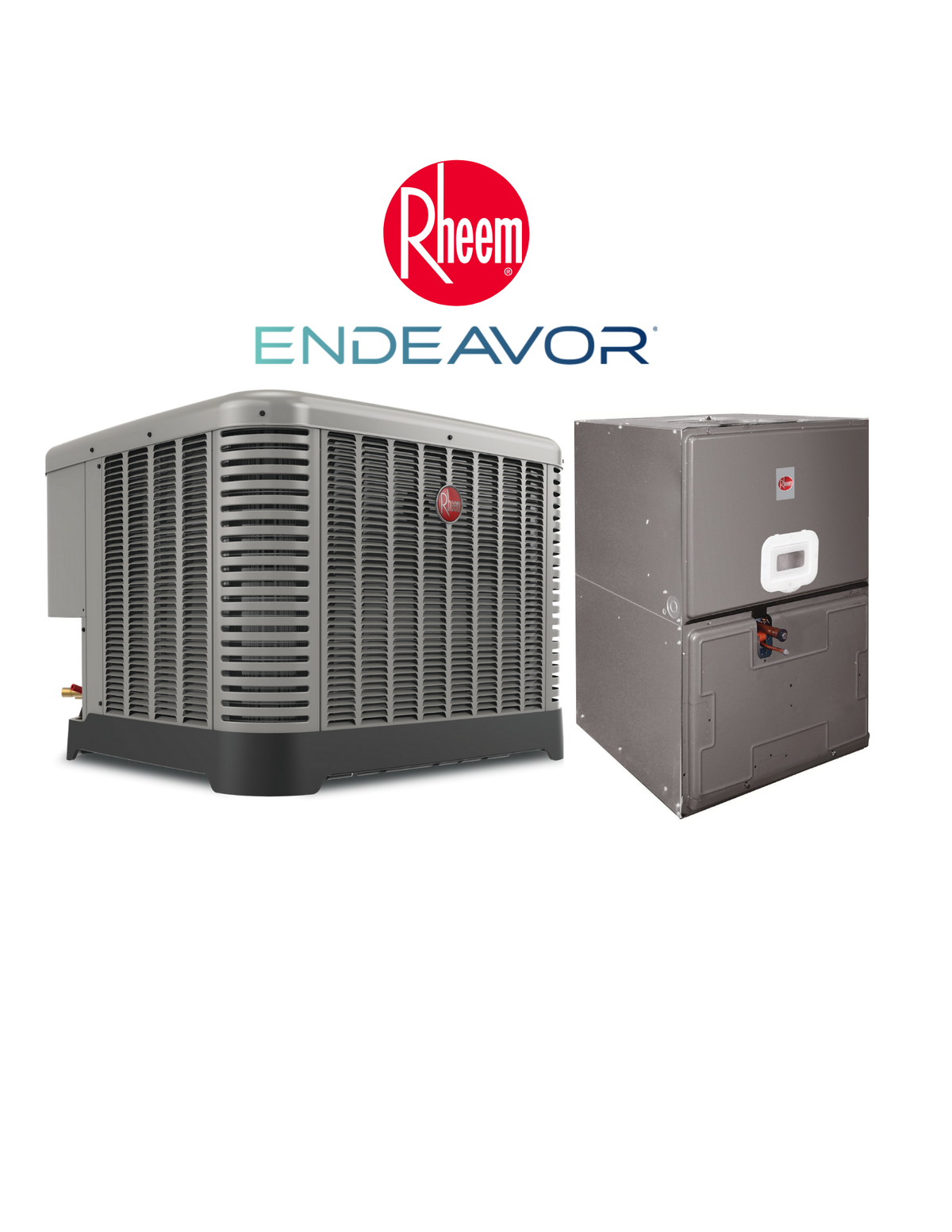

Rheem 2.5 Ton AC system with 15.2 SEER2.
RA14AY30AJ1NALHP - Endeavor™ Line 2.5 Ton 15.2 SEER2 Condenser, R-454B, With High/Low Pressure Switch.
RB2TY3621STANMJB05 - 3 Ton, 21" W, 2-Stage Air Handler, Constant Torque Motor, Breaker, R-454B, 5 kW, 208-240/1/60.
Heater: Built in heat.
Features and Benefits Endeavor® Line Select™ Serie
Features and Benefits Endeavor® Line Select™ Serie
• 7mm Condenser Copper Coil: Requires less refrigerant allowing for a smaller and lighter footprint while enhancing reliability.
• Swept Wing Fan Technology1: Features quieter operation and improved unit acoustics.
• PlusOne® Triple Service Access: 15 in. wide, industry leading corner service access, two fastener, removable corner and individual louver panels — makes repairs easier and faster.
• Designing for Sustainability with Low GWP: For 2025, the Environmental Protection Agency (EPA) has set a global warming potential (GWP) limit of 700 for refrigerant used in heating and cooling systems. This new requirement will result in a 78%2 lower GWP than previous-generation refrigerants — with only minimal changes to system installation. For us, this is another step toward our continued sustainability goal of reducing greenhouse gas emissions, while still delivering an exceptional level of energy efficient, dependable comfort.
• PlusOne® Refrigerant Detection System™3: An integrated one-box, patented design featuring the A2L sensor and mitigation board, offering easier commissioning with a single component and simplified wiring configuration, compatibility with any 24V thermostat application and system protection by automatically pausing outdoor unit operation — if excess refrigerant is detected.
Features and Benefits Endeavor® Line Air Handlers
Features and Benefits Endeavor® Line Air Handlers
• Quiet Operation1: Provided by a cabinet construction with 1.0 inch foil faced insulation for quieter sound characteristics.
• Rugged Steel Cabinet Construction: Designed for added strength and versatility.
• Compact Design and 4-Way Field Convertible Design: Stands at only 35" tall and convertible options include vertical upflow, vertical downflow, horisontal left hand or right hand air supply.
• Less than 2% Cabinet Air Leakage at 1-inch H2O: When tested in accordance with ASHRAE Standard 193.
• Designing for Sustainability with Low GWP: For 2025, the Environmental Protection Agency (EPA) has set a global warming potential (GWP) limit of 700 for refrigerant used in heating and cooling systems. This new requirement will result in a 78%2 lower GWP than previous-generation refrigerants — with only minimal changes to system installation. For us, this is another step toward our continued sustainability goal of reducing greenhouse gas emissions, while still delivering an exceptional level of energy efficient, dependable comfort.
• PlusOne® Refrigerant Detection System™3: An integrated one-box, patented design featuring the A2L sensor and mitigation board, offering easier commissioning with a single component and simplified wiring configuration, compatibility with any 24V thermostat application and system protection by automatically pausing outdoor unit operation — if excess refrigerant is detected.
