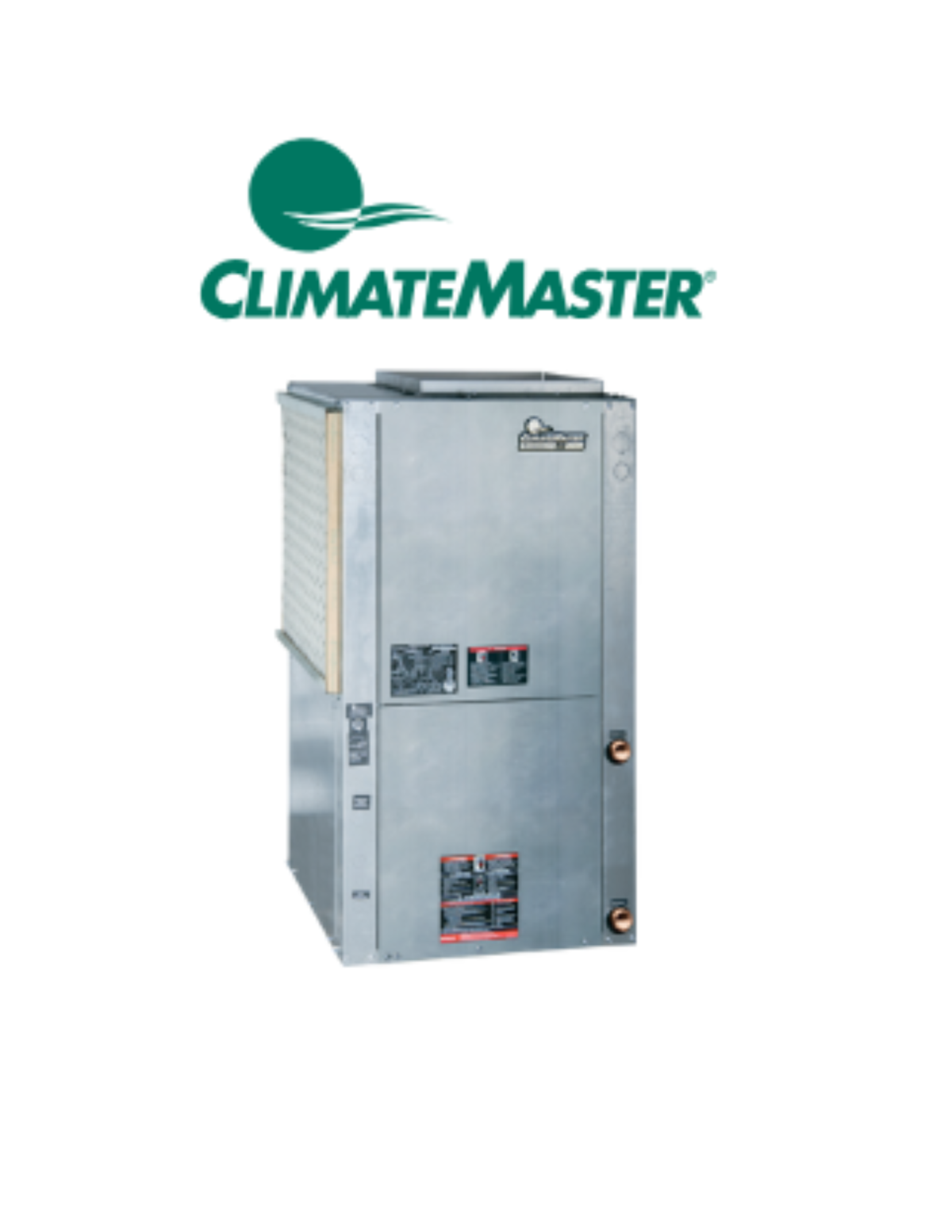

ClimateMaster - 1.5 Ton - Tranquility 18 - Water Source Heat Pump - Left Return

Climate Master Water Source Heat Pump The Tranquility® 18 (SC) Compact Single-Stage Series is designed to exceed ASHRAE 90.1 efficiency standards while utilizing environmentally friendly R-454B low Global Warming Potential (GWP) refrigerant. Climate Master Geothermal heat pump The Tranquility® 18 (SC) series is available in sizes ranging from 006 (½ ton) to 060 (5 tons) and features a compact cabinet that easily fits into tight spaces. Key configurable options include high-efficiency Constant Volume (CV) or Constant Torque (CT) EC motors and compatibility with various Building Management Systems (BMS). Climate Master Geothermal Heat Pump standard features include a unique double-isolation compressor mounting for quiet operation, sound-absorbing insulation, and a Refrigerant Detection System (on size 60, optional on other sizes). Climate Master WSHP The Tranquility 18 SC series water source heat pump is also designed to be backward compatible with many older water-source heat pumps, ensuring application flexibility.

• Sizes 006 (1/2 ton, 1.8 kW) through 060 (5 tons, 17.6 kW)
• Refrigerant Detection System (RDS) (mandatory on size 060, optional feature for sizes 006-048)
• Coaxial heat exchanger
• Sound-absorbing glass-fiber insulation
• Unique double-isolation compressor mounting for quiet operation
• Insulated divider and separate compressor/air-handler compartments
• TXV metering device
• Microprocessor controls with on-board fuse and emergency shutdown
• Field-convertible discharge-air arrangement for horizontal units
• PSC three-speed fan motor (two-speed for 575V)
• Unit Performance Sentinel performance-monitoring system
• Eight standard safety features
• Non-corrosive polymer drain pan
• External Connecting Port on front-left corner post facilitates service tool connectivity, thereby reducing startup, commissioning and service time
• CXM2 Communicating Controls - Multiple communication pathways for unit access and diagnosis
  • Cloud-based remote monitoring via iGate® 2 Communicating (AWC) Thermostat
  • Connect directly to the system with a handheld service tool
  • Provides real-time unit operating conditions
  • Reduces startup, commissioning and service time by providing key system temperatures electronically
  • Captures operating conditions in the event of a safety shutdown

5-year compressor.

5-year refrigeration circuit, warranty covers coils, reversing valve, expansion valve.

5-year control board covers CXM2/DXM2.5
