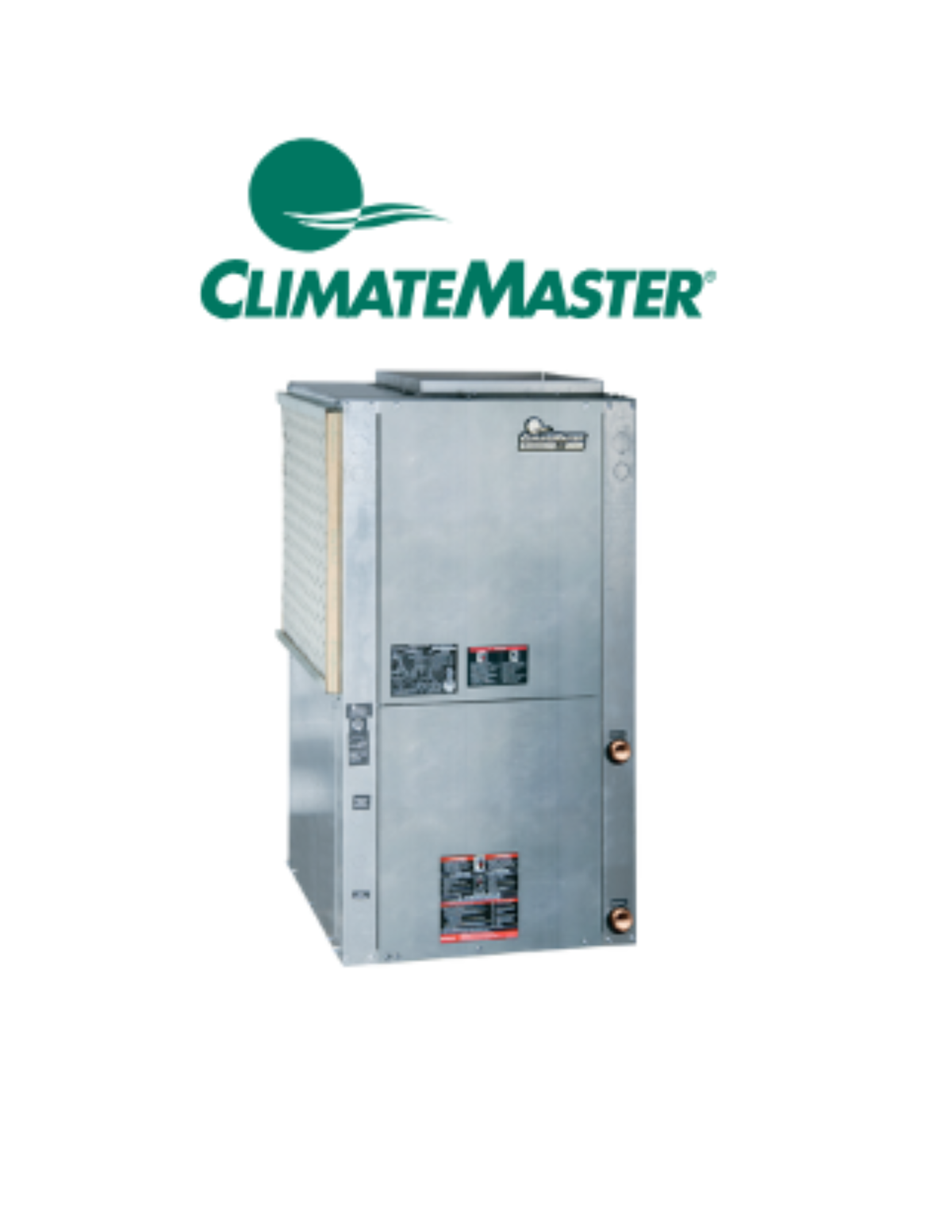

• Climate Master THE Tranquility® 18 (SC) COMPACT SINGLE-STAGE SERIES SCT009AGC3ZC0PS Left Hand Return.
1 1

ClimateMaster

ClimateMaster 0.75 Ton - Cupronickel - Water Source Heat Pump - Left Hand Return

ClimateMaster 0.75 Ton - Cupronickel - Water Source Heat Pump - Left Hand Return

$2,876.00 USD
$2,876.00 USD
Sale Sold out
Shipping calculated at checkout.

Key specifications

Brand
ClimateMaster
Ton Size
0.75 Ton
Compressor
Single-Stage
Model numbers
SCT009AGC3ZC0PS

Systems sold with required licensed installation. Installation is priced separately.

Climate Master SCT009AGC3ZC0PS

THE Tranquility® 18 (SC) COMPACT SINGLE-STAGE SERIES SCT009AGC3ZC0PS Left Hand Return.

ClimateMaster 0.75 Ton R-454B Cupronickel Vertical Climate Master The Tranquility 18 (SC) Compact Series water-source heat pumps are designed to meet the challenges of today’s HVAC demands with one of the most innovative products available on the market.

Climate Master Water Source Heat Pump The Tranquility 18 (SC) Compact Series raises the bar for water-source heat pump efficiencies, features, and application flexibility.Not only does Climate Master The Tranquility SC Geothermal Water Source Heat Pump exceed ASHRAE 90.1 efficiency standards, but it also uses R-454B low Global Warming Potential (GWP) refrigerant, making WSHP an extremely environmentally friendly space conditioning product solution.

Overview

Climate Master Water Source Heat Pump The Tranquility® 18 (SC) Compact Single-Stage Series is designed to exceed ASHRAE 90.1 efficiency standards while utilizing environmentally friendly R-454B low Global Warming Potential (GWP) refrigerant. Climate Master Geothermal heat pump The Tranquility® 18 (SC) series is available in sizes ranging from 006 (½ ton) to 060 (5 tons) and features a compact cabinet that easily fits into tight spaces. Key configurable options include high-efficiency Constant Volume (CV) or Constant Torque (CT) EC motors and compatibility with various Building Management Systems (BMS). Climate Master Geothermal Heat Pump standard features include a unique double-isolation compressor mounting for quiet operation, sound-absorbing insulation, and a Refrigerant Detection System (on size 60, optional on other sizes). Climate Master WSHP The Tranquility 18 SC series water source heat pump is also designed to be backward compatible with many older water-source heat pumps, ensuring application flexibility.

Features and Benefits
  • Sizes 006 (1/2 ton, 1.8 kW) through 060 (5 tons, 17.6 kW)
  • Refrigerant Detection System (RDS) (mandatory on size 060, optional feature for sizes 006-048)
  • Coaxial heat exchanger
  • Sound-absorbing glass-fiber insulation
  • Unique double-isolation compressor mounting for quiet operation
  • Insulated divider and separate compressor/air-handler compartments
  • TXV metering device
  • Microprocessor controls with on-board fuse and emergency shutdown
  • Field-convertible discharge-air arrangement for horizontal units
  • PSC three-speed fan motor (two-speed for 575V)
  • Unit Performance Sentinel performance-monitoring system
  • Eight standard safety features
  • Non-corrosive polymer drain pan
  • External Connecting Port on front-left corner post facilitates service tool connectivity, thereby reducing startup, commissioning and service time
  • CXM2 Communicating Controls - Multiple communication pathways for unit access and diagnosis
    • Cloud-based remote monitoring via iGate® 2 Communicating (AWC) Thermostat
    • Connect directly to the system with a handheld service tool
    • Provides real-time unit operating conditions
    • Reduces startup, commissioning and service time by providing key system temperatures electronically
    • Captures operating conditions in the event of a safety shutdown

Warranty

5-year compressor.

5-year refrigeration circuit, warranty covers coils, reversing valve, expansion valve.

5-year control board covers CXM2/DXM2.5
